A phrase generally tossed round on the monitor: “They’ve received tons of aero.” And whereas that could be helpful shorthand, it’s a little bit of a misnomer as each automobile has an equal variety of aerodynamics: one.
The legal guidelines of physics apply to each automobile equally, however when racers say “aero,” they’re speaking about utilizing the research of aerodynamic ideas to make a automobile sooner across the monitor.
The standard results of that aerodynamic research is bolting on extra components, with two enhancements being the most typical: a rear wing and a entrance splitter.
Why Do Race Vehicles Want Downforce?
Earlier than we begin making aero components for our V8-powered Nissan 350Z, we have to outline the issue. And our downside is a standard one on the monitor: Vehicles are simply wings with wheels.
Assume we’re loopy? Image an airplane wing. It’s flat on the underside and curved on the highest, with a number one and a trailing edge–similar to a automobile. Air is cut up at the vanguard, travels throughout the wing, then joins again up with its different air molecule buddies on the trailing edge. Air shifting over the curved high has to maneuver farther, and subsequently sooner, than air taking the direct route throughout the flat backside, producing carry.
When you’re an aerodynamic engineer, we’re sorry. We all know that’s an oversimplification. And we all know that trendy airfoils aren’t really so simple as what we’ve described. However the fundamental precept of a wing is appropriate, even in our easy instance.
So sure, automobiles are inherently wing-shaped, and in case you drove one quick sufficient, it could take off similar to your final Delta flight. Our 350Z, for instance, would actually fly into the air at 600 mph.
On the finish of the day, most avenue automobiles resemble wings. What do wings do? Create carry. To enhance our lap instances, we have to mitigate that carry–and hopefully enhance downforce.
What’s unsuitable with carry? Nicely, how properly do you suppose an airplane’s tires work at 30,000 ft? Elevate removes weight from the automobile’s contact patch, eradicating obtainable traction within the course of. That is unhealthy, particularly in case you’re on monitor.
In fact, OEMs know this, and trendy automobiles are all put via wind tunnels. So why do they construct automobiles with carry? As a result of they’re not nervous about carry, they’re nervous about drag. Drag is the quantity of drive it takes to push a automobile via the air, and it’s a major driver of gasoline financial system in trendy automobiles.
Nissan seemingly cared far more about decreasing drag than it did about rising downforce when it designed our 350Z. Extra carry was simply an unlucky facet impact of making a streamlined form.
Elevate vs. Drag and Aerodynamic Effectivity
Now that we’ve launched carry and drag, we should always discuss how intimately associated they’re. Elevate creates drag, and also you’ll see many aerodynamic units marketed with their lift-to-drag ratio in large, daring numbers.
This ratio is a measure of aerodynamic effectivity, and extra environment friendly aerodynamic units basically do the identical aerodynamic work whereas losing much less horsepower to beat drag. A contemporary Boeing 737 has a really excessive lift-to-drag ratio, whereas a paper airplane with flat wings has a really low lift-to-drag ratio.
Oh, and carry can go the wrong way, too. Fly an airplane the other way up, and its wings are literally making downforce. That’s all a race automobile wing is, which is why you’ll see them marketed with lift-to-drag ratios, too.
What About Downforce?
We’re 550 phrases into this story about downforce, and all we’ve actually talked about is raise. Why? As a result of the identical instruments that counteract carry could be made extra aggressive till they make web downforce on the automobile.
Downforce is superior for race automobiles: It places extra drive on every tire, giving extra traction, with out including a lot mass to the automobile. A automobile with 1000 kilos of downforce has the traction of a automobile that’s 1000 kilos heavier, nevertheless it solely has to make use of that traction to speed up the extra mass of the aerodynamic units added. Downforce is the closest factor to free lunch in motorsports, particularly if it’s completed via aerodynamic parts with a excessive lift-to-drag ratio.
What Can We Do About All This?
Fairly difficult downside, proper? We’ve established the fundamentals: Vehicles are simply large wings that make carry and racers add aerodynamic units like wings, splitters, spoilers, dive planes, wheel wickers, diffusers, flat bottoms and extra to counteract carry and make downforce.
However which aerodynamic units ought to we choose, and the way precisely will every have an effect on our automobile? Needless to say each single aerodynamic change impacts each different a part of the automobile, too, a proven fact that’s properly illustrated by the design of these ugly headlights on the entrance of each Nissan Leaf. These headlights meaningfully change the airflow across the Leaf’s mirrors, decreasing drag and wind noise within the derpy electrical automobile.
{Photograph} Courtesy Nissan
We have to determine how you can match that stage of aerodynamic sophistication in our house storage and plan a complete package deal of enhancements to make our 350Z sooner.
Generally that is simple–a rule ebook may limit what could be accomplished to the purpose the place there’s just one actual possibility for aerodynamic enchancment–or typically you may have a look at what different folks racing your chassis are working and crib from their notes.
We didn’t see both of those choices as significantly helpful. NASA’s TT2 guidelines barely restrict aerodynamic enhancements, and we didn’t discover any 350Zs with well-developed and -documented aero packages within the wild.

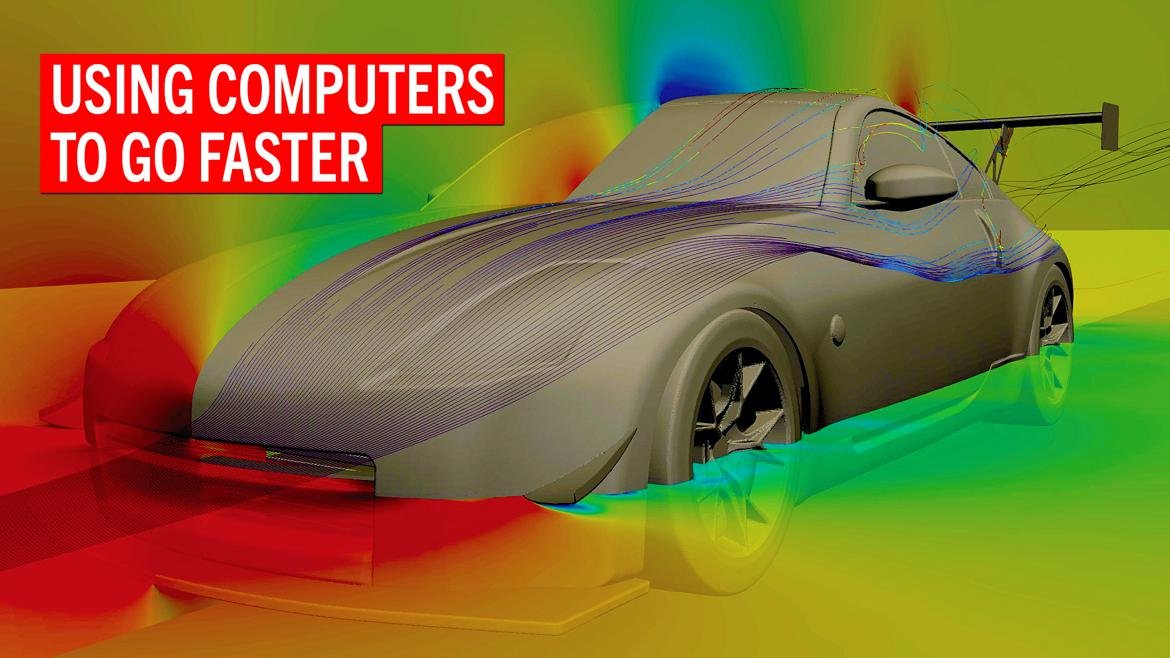

Plus, we figured this was a possibility to find out about an enchanting new world–the world of computational fluid dynamics, higher identified by its abbreviation, CFD. CFD is actually a digital wind tunnel the place a pc simulates every air molecule because it interacts together with your automobile, your aerodynamic units, the street and the opposite air molecules.
Groups which have taken benefit of recent CFD embrace each NASCAR effort, each F1 staff, each IndyCar staff and even Grassroots Motorsports. Yeah, you learn that proper. Right here’s how we put our 350Z into the digital wind tunnel, what we discovered alongside the way in which, and the way you should utilize this software to make your personal automobile sooner.
Wind Tunnels vs. CFD
Cease screaming. We hear you. You’re saying, “Go to a wind tunnel! That’s what all the opposite race automobiles do after they have questions on aerodynamics!”
Nicely, not fairly. Positive, that was the reply a decade in the past. And wind tunnels nonetheless have a spot in trendy motorsports. However increasingly more, the skilled groups are literally utilizing CFD. Why? A number of causes. First, wind tunnels are costly. It takes a rolling street wind tunnel to finest the info that CFD computer systems can spit out, and parking your automobile on that supersized fan/treadmill mixture prices 1000’s of {dollars} per hour.
The factories have entry to all kinds of aero analysis, together with each scale and full-size wind tunnels. An instance of that aero information: how the Nissan Leaf’s headlights direct air across the mirrors. Images Credit: Courtesy GM (mannequin), Courtesy Porsche (GT3)
Second, wind tunnels require the automobile’s bodily presence. And whereas that’s not that large of a deal, additionally they require each aerodynamic configuration to be represented. If you wish to check three wing designs and three splitter designs, you’d higher purchase and convey a useful copy of every–in addition to a checkbook to pay for the time you spend within the tunnel altering components on the automobile.
CFD, as compared, doesn’t require taking a automobile wherever. It doesn’t require any components. In truth, testing a distinct wing is so simple as drawing it onto the 3D mannequin, which means it permits groups to attempt extra issues in additional circumstances. CFD additionally permits much better visualization and information seize than a wind tunnel, as instrumenting and measuring every check isn’t even an merchandise on the to-do record. The pc handles all of that mechanically.
Discovering a Digital Wind Tunnel
Okay, so CFD is cool, however how do mere mortals like us entry it with out choosing the lock on the Purple Bull Racing server room? That query led us to Morlind Engineering, a small agency based mostly simply ft from the Panoz race store subsequent door to Street Atlanta. It focuses on CFD work for aerodynamic corporations and for racers similar to us, and proprietor Rob Lindsey agreed to open the hood on every step of the method as the parents there analyzed our 350Z’s aerodynamic efficiency.
In fact, it does take cash to rent Morlind. A CFD evaluation package deal begins at about $4500, although costs range based mostly on how a lot you’d like to check and whether or not you have already got a CAD mannequin of your automobile that may be positioned within the tunnel. We expect it’s a good worth to pay for what we discovered, however let’s not get forward of ourselves. It’s time for the 1st step: scanning.
How one can 3D Scan Your Race Automobile at House
Step one of the CFD course of? Create a CAD mannequin of the automobile. That begins with a three-dimensional scan of the automobile. Morlind affords two methods to do that: by bringing the automobile to the store, or by following its step-by-step directions at house. Since we needed to maintain engaged on our 350Z in our personal storage whereas the CFD work was accomplished, we selected to scan our automobile at house.
What’s it take to scan a automobile? Morlind has perfected a way based mostly on photogrammetry, which makes use of a whole lot of images and a flowery laptop algorithm to assemble a scan of the automobile with none specialised gear. All you want is a digital digital camera with a fixed-focal-length lens; we used a 10-year-old DSLR.
Earlier than taking pictures images, although, we would have liked to chalk the automobile. Computer systems wrestle with reflective surfaces, and sprayable chalk dulls them whereas simply washing off. It additionally creates a singular sample all around the automobile. By spraying completely different colours on completely different sides of our 350Z, we ensured that each sq. inch can be distinctive, and the pc wouldn’t have any points combining the images right into a mannequin of the automobile.
We don’t have the finances for wind tunnel time, however we will nonetheless carry out aero analysis through a CFD evaluation. The primary steps: Cowl our LS-swapped Nissan 350Z in chalk and take plenty of images. Images Credit: Chris Tropea
Chalk utilized, it was time for images. Morlind’s recommendation: Shoot 500 to 1000 images, every perpendicular to the panel being photographed and with even lighting. We circled the automobile on a ladder, stool and creeper, gathering a whole lot of images of each panel. Then we uploaded our images, sat again and waited.
How one can Create a 3D CAD Mannequin From Your 3D Scan
With our half accomplished, it was time for Morlind proprietor Rob Lindsey to get to work. It solely took a number of hours for our automobile’s 3D scan to seem on his display, however, as he defined, that was simply the tip of the iceberg.
Why can’t the 3D scan go on to the digital wind tunnel? As a result of it’s only a computer-generated mesh within the form of our 350Z, and it isn’t a floor the pc sees as hermetic. To run any CFD evaluation, Rob needed to flip this scan right into a CAD mannequin of the automobile, full with spinning wheels and an engine bay.
Consider it this fashion: The 3D scan generated a file much like what you’d see in case you draped cloth over your automobile and took its image. Now it was Rob’s job to construct the underlying automobile represented by that cloth.
Alongside the way in which, Rob would additionally mannequin the bumper openings, engine bay, drivetrain, underside, wheels and extra, with the objective of simulating actual life as intently as doable. Morlind’s CFD mannequin would simulate airflow over every of this stuff, and that will take time.
Morlind Engineering used our images to create a full CAD mannequin of our 350Z. Now we will work on bettering the automobile’s aero profile. Picture Courtesy Morlind Engineering
There’s no shortcut for this a part of the method, which additionally represents many of the price for this CFD work. Morlind often payments 60 to 100 hours to mannequin a race automobile. Rob spent roughly 80 hours modeling our 350Z from scratch in Siemens NX, utilizing the 3D scan to information him as he created each particular person airplane of the physique by hand, right down to the rolled fenders we’d accomplished just some weeks earlier.
The end result was wonderful: a wonderfully correct 3D mannequin of our 350Z within the laptop, full with the LS swap, radiator, suspension management arms and extra. Now it was time for the actual magic to start. We’ll put our automobile in Morlind’s digital wind tunnel within the subsequent installment of this collection.
