Half two of Past the Racecar uncovers how motorsport engineering firms had been integral to the launch of a daring, new electrical powerboat championship.
They might be worlds aside by way of the surfaces they race on, however there was crossover between four-wheel motorsport and boat racing for a few years.
Within the twentieth century Henry Segrave, Malcolm Campbell and Donald Campbell set outright pace information on each land and water. Kaye Don, an achieved racing driver, achieved the latter.
In 1958, Briggs Cunningham, the American sportscar constructor and driver who twice completed fourth on the 24 Hours of Le Mans, received the America’s Cup as a skipper. There was additionally the unique ‘Flying Finn’, Timo Makinen, a three-time Rally GB winner who triumphed within the inaugural Spherical Britain Powerboat Race in 1969.
Extra lately, Components 1 technical experience has filtered into crusing as Mercedes engineers have imparted their knowledge to the INEOS America’s Cup crew. Final yr, a brand new electrical powerboat sequence referred to as E1 held its inaugural season with some acquainted faces.
Sanctioned as a world championship by the UIM (Union Internationale Motonautique – powerboat racing’s equal to the FIA), E1 is the most recent string within the bow of emission-cutting sequence chaired by Alejandro Agag, coming after Components E and Excessive E.
Being water-based, it’s additional faraway from its four-wheel siblings in some ways. However motorsport engineering and dealing processes had been very important in getting the brand new sequence up and operating.
All-star line up
E1 held its first race off the coast of Jeddah, Saudi Arabia, in February 2024. That fashioned the beginning of a five-round season contested between eight groups, all of which had been fronted by well-known faces from the broader worlds of sport and leisure.
Group buyers included seven-time Superbowl champion Tom Brady, 22-time tennis Grand Slam winner Rafael Nadal, ex-Components 1 driver Sergio Pérez and actor Will Smith.
The multi-lap races had been contested over roughly 8km between as much as 4 boats. Driving crews consisted of 1 male and one feminine pilot, who took turns to compete. The format, with its qualifying stage resulting in semi-finals and a grand last, was designed to be simply understood by racecar and normal sport followers alike.

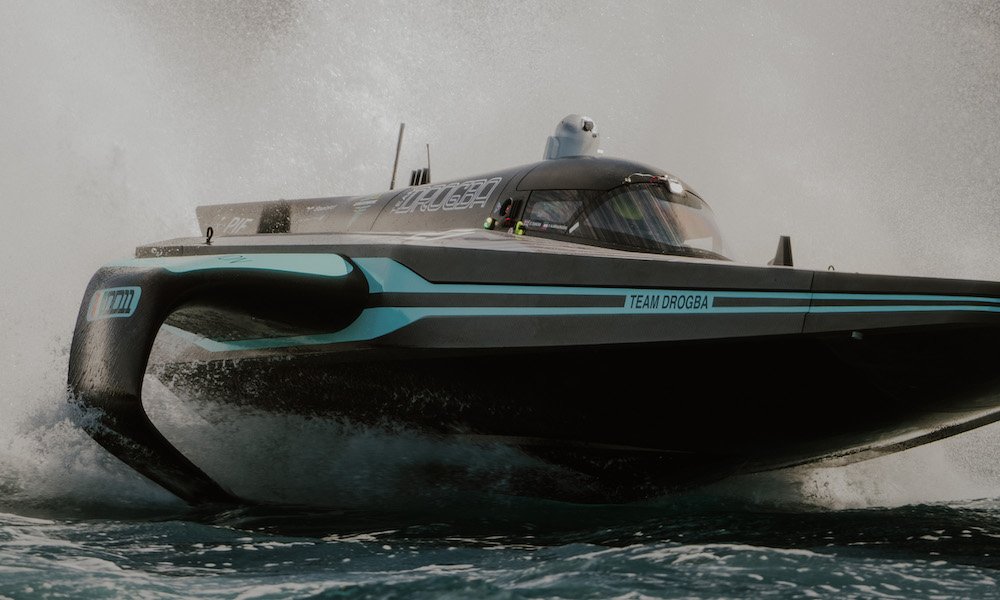

All E1 groups are given the identical, 7.3m lengthy watercraft, the RaceBird, developed by British marine start-up, SeaBird Applied sciences, which counts Agag as certainly one of its buyers. Able to 93km/h (50knt) on its hydrofoils, the vessel is powered by a 150kW Helix electrical motor feeding off power launched by a 518V, 35kWh Kreisel Electrical battery.
Each firms can be acquainted to Racecar Engineering readers for his or her motorsport involvement, as will McLaren Utilized, which gives the electronics and management software program. SeaBird built-in these techniques, and the powertrain, into the boat, which was designed with enter from marine specialist, Victory Marine.
Motorsport connections
Whereas Agag is the recognisable face of E1, the particular person on the helm on a day-to-day foundation is chief government, Rodi Basso. An ex-Ferrari and Purple Bull F1 race and efficiency engineer, Basso rifled by means of his motorsport deal with e book to assist put the instruments in place for E1 to launch.
‘There’s a private component of consolation zone,’ explains Basso. ‘Earlier than launching the championship, I used to be very a lot on the planet of electronics and knowledge intelligence.
‘Given the precise necessities of the boat, I went very easy to suppliers and companions I knew I might belief by way of delivering in a short while and matching our key efficiency indicators. Within the marine business, there isn’t any provider of those fields on the degree of automotive and motorsport.’
That’s not to say the sequence was naïve sufficient to disregard marine specialists for sure areas the place their capabilities might be useful. Marine firms had been central to the design of the foil and outboard, each alien elements to racecar people. Navico offered specialist navigation tools and course charts by means of its Simrad and C-MAP manufacturers.
The E1 powerboat is, due to this fact, an amalgam of motorsport and marine specialists, with the previous taking a number one function within the powertrain and automobile management departments.
Woking-on-Sea
Contemplating Basso’s previous function as McLaren Utilized’s motorsport enterprise director from 2016 to 2019, the Woking-based firm was maybe an apparent associate to signal, although its choice got here after a evaluate of a number of candidates.
McLaren Utilized is supplying its VCU-500 management unit and knowledge logger to E1. It additionally gives the software program instruments required to generate the management purposes and analyse each dwell and recorded knowledge, together with its Superior Telemetry Linked Acquisition System (ATLAS) and McLaren Management Toolbox (MCT).
E1 was an early adopter of the VCU-500 when it was beneath growth. It’s now a commercially obtainable product utilized by a number of groups in Components E, in addition to the Mission H24 hydrogen sportscar demonstrator, amongst others. The VCU present in E1 is identical {hardware} part utilized in motorsport, with the one distinction being within the software program functionality. There may be additionally an apparent distinction in setting.
‘Though the VCU is IP rated for defense towards water ingress, in E1, the unit is put inside an extra carbon field with the remainder of the electronics, so it’s acquired an additional layer of safety,’ says Josh Wesley, motorsport product supervisor at McLaren Utilized.
Wesley was SeaBird’s head of engineering all through the RaceBird growth and the 2024 season opener, earlier than switching again to his earlier firm after the Jeddah occasion.
‘One motive to go for a motorsport unit was that we would have liked one thing that was sturdy and would work in harsh environments. Broadly, its use may be very related. It’s simply controlling barely various things – propeller as an alternative of wheels, foils and rudders as an alternative of steering. From the powertrain viewpoint, it’s nearly an identical in its use to that of an electrical motorsport automotive.’
Operating on a 64-bit working system, the VCU-500 is the mind of the RaceBird, controlling features of the battery, inverter, sensor processors, show objects, throttle mapping and extra.
It predominantly controls these utilizing CAN (Controller Space Community) bus communication networks. There could be a number of CAN bus networks in a single automobile, connecting varied management items for various areas of the boat. The RaceBird has eight of them.
Managed setting
‘The entire principal gadgets on the boat are managed by way of CAN,’ confirms Wesley. ‘This implies there’s a very giant variety of parameters obtainable for each evaluation and management, and managing these is important.
‘With the McLaren Management Toolbox software program and Mannequin Administration suite, including new gadgets to the CAN community, constructing the software program to speak with them, ingesting the huge quantity of knowledge and utilizing it in management methods is easy.’
In keeping with Wesley, utilizing MCT was important to E1 powerboat’s growth, permitting new software program methods and performance to be developed and rolled out to the VCU swiftly, with new variations usually being deployed all through a check. This stored the tempo of growth excessive and each software program and {hardware} growth in sync.
‘The actual good thing about the VCU is that it may be used not just for management, but in addition for knowledge logging and telemetry,’ Wesley provides. ‘Logging is knowledge that’s recorded to reminiscence and telemetry is knowledge over the air that you just’re viewing dwell. Telemetry gadgets assist you to stream knowledge which, throughout growth, we used each time the boat ran, for monitoring of the security techniques and the battery.
‘We might then speak to the pilot on the radio and inform them if they should cease, or if there is a matter on the boat. It’s much more tough to go and get better a ship when it’s stopped. You’ll be able to’t simply put it on a truck like with a automotive, and the VCU allowed us to observe techniques and forestall us being stranded on the water with a difficulty.’
Battery growth
E1 reached out to Kreisel Electrical in early 2021 about utilizing its battery expertise within the RaceBird.
The Austrian agency works in each motorsport and marine: its actions within the former have included creating batteries for the electrical RX1e class of the FIA World Rallycross Championship and dealing with Compact Dynamics on the FIA World Rally Championship’s hybrid system. Kreisel additionally develops battery techniques for electrical pleasure and business boats.
‘E1 batteries profit from related necessities [to racecars] by way of cooling efficiency and talent to ship excessive C-Charges [charge and discharge currents], whereas on the similar time retaining cell temperature inside the limits for this kind of utility,’ says Markus Fürst, mechanical design engineer at Kreisel Electrical. ‘The result’s a small, light-weight battery with excessive efficiency.
‘The carbon housing of the battery was a serious problem. Any modifications in battery quantity or house necessities would affect growth of all the boat. The RaceBird vessel was developed in parallel with the battery.’
The E1 battery has a nominal voltage of 518V, a capability of round 37kWh and weighs 246kg. For context, the RaceBird suggestions the scales at 1100kg, the carbon fibre chassis alone being nearly 900kg of that. Kreisel makes use of cells with excessive energy density, reasonably than excessive capability, as a result of they’ve a excessive performance-to-energy density ratio.
Security-wise, 4 water entry sensors are constructed into the battery to detect the presence of liquid. There may be additionally a conductivity sensor within the cooling circuit that detects water intruding into the dielectric battery cooling fluid.
A battery administration system (BMS) displays knowledge from the battery and generates warning indicators when errors happen. Growing the battery for E1 has confirmed a helpful crossover exercise for Kreisel.
‘Being the battery provider for E1 gives a variety of information from efficiency battery behaviour beneath excessive situations,’ says Fürst. ‘This helps us to evolve our expertise necessities. Business and pleasure craft boats are totally different, so a distinct sort of module is used for these purposes, which has totally different security options and necessities by way of efficiency and lifelong.’
Batteries are charged by the Qube, a DC charging station from QiOn designed to be sturdy to be used outside, and conveyable. It has an output of as much as 80kW, though the RaceBird doesn’t use all that obtainable energy.
‘Merely for the sporting format that we now have, we don’t must go to these ranges,’ explains Basso. ‘That is additionally serving to the battery life. We will cost the battery in 40 minutes with out affecting the sporting format. Our autonomy is for about half an hour.
‘We have to contemplate that each session is within the area of 12-Quarter-hour. Each two or three periods, we have to recharge. The excellent news is we don’t must recharge totally, we are able to prime up and hold going.’
Mercury rising
The E1 electrical motor and inverter are located on the rear, the place the outboard usually sits on a normal powerboat. Sometimes, an outboard consists of three components: the powerhead, housing the engine sat above the water, the connecting mid-section and the decrease part, that includes the waterborne propellor.
For 2024, the E1 motor and inverter had been built-in into a normal inner combustion outboard offered by American powerboat firm, Mercury Racing. This used the mid-section and kit case of Mercury’s outboard, minus the six-cylinder petrol engine.
Integrating the electrical powertrain into the ICE outboard was one of many main design challenges, partly as a result of it was not initially constructed to run with a rear foil.
‘It was based mostly on a business utility, so the extent of masses and obligation cycles the outboard was seeing, was utterly new, and perhaps generally an excessive amount of,’ explains Basso. ‘However we now have been working very carefully with Mercury to repair the whole lot.
‘Up to now, we’re happy with what we’re operating. Mercury has the largest order e book of outboards worldwide, so it was simply unbelievable [they contacted E1] as a result of in August 2021 we had been little greater than a PowerPoint. It has been a terrific collaboration, and we’re engaged on the longer term as we speak.’
Elaborating additional on a number of the technical hurdles of integrating the inner combustion outboard, Basso says:
‘We couldn’t contact the rear foil as a result of it was not a self-standing part. It was there to stability the entrance foils, and we would have liked to maintain the stability because it was. It is a matter of hydrodynamics and masses.
‘We found we had three elements that wanted to be bolstered. They had been designed for a thermal engine and had some mechanical traits that weren’t appropriate for our resolution, so we needed to re-shape components.
‘It was a matter of structural engineering and reinforcing some mechanical components till we acquired to the purpose that the entire outboard was enhanced and extra sturdy, so it’s now serving the aim.’
Foil’s gold
The RaceBird is a foiling craft, so it makes use of dynamic ideas which were round for over a century.
Foiling was explored within the early 1900s. A notable pioneer was Enrico Forlanini, who mounted foils on ladder-like struts hooked up over the aspect of his boat at Lake Maggiore, the place E1 has its technical headquarters at the moment. One other was Alexander Graham Bell, inventor of the phone.
Foiling is the act of lifting the boat’s hull into the air because it positive aspects pace, liberating it from the drag of the water. A foil is actually an underwater wing and shares many bodily ideas with its aerodynamic cousins utilized in aviation and motorsport.
The wing’s hydrodynamic form guides water quickly excessive floor, making a low-pressure space above that floor in accordance with Bernoulli’s Precept, whereby stress decreases as fluid pace will increase, and vice versa.
The imbalance between the high-pressure zone beneath the foil and the low-pressure zone above it generates sufficient carry for the hull to breach the floor. This leads to the placing sight of a hydrofoil boat that seemingly flies above the water, solely linked to the floor by skinny stilts.
The devoted E1 foils had been designed by Caponnetto Hueber, a naval consultancy with America’s Cup expertise, which used computational fluid dynamics (CFD) to map and check the hydrodynamic properties.
The foil design was then constructed to print by Milan-based ERF, earlier than going to SeaBird for meeting and integration with the remainder of the boat. It was, due to this fact, an space by which marine firms had been leaned on extra closely.
Trim and carry
E1 drivers could make dwell set-up changes to the foil’s angle of assault and the peak of the outboard.
The latter includes elevating and reducing the outboard relative to the boat’s physique. The upper the outboard, the nearer the boat sits to the water. Such set-up modifications are made on the fly throughout races and are helpful when following one other boat’s disruptive wake.
‘Usually, you possibly can both be sluggish and steady or quick and unstable,’ says Joe Sturdy, crew principal at Group Brady and an ex-Purple Bull F1 energy unit engineer. ‘When you change the carry, your trim window modifications as effectively, so you need to play with them each; it’s threat vs reward.
‘You could be fairly unstable and fairly quick however drop off the foils extra usually, which implies you’re ranging from a high-drag part of acceleration extra regularly all through a lap. Or you possibly can attempt to be sluggish and constant, staying on the foils the entire time and appearing with that medium degree of drag all through the lap.’
In keeping with SeaBird Applied sciences’ chief technical officer, Nathan Baker, the E1 powerboat operates ‘nearly on a knife edge’ that requires fixed adjustment.
‘That’s why there’s a variety of involvement from the pilots in setting the peak of the rear foil and trimming it,’ he says.
‘There may be an excessive amount of talent concerned in that as you need to anticipate water situations and alter accordingly. Those that can do which are smoother and quicker.’
Driver crossover
It’s not simply expertise that has been transferred from motorsport to E1. Most of the pilots have racecar expertise, although the change from floor to water has required some re-calibration.
The sector contains 2019 FIA World Rallycross champion Timmy Hansen, former Nissan GT3 ace Lucas Ordoñez and Excessive E driver Catie Munnings. There may be additionally Emma Kimiläinen, a race winner in W Sequence, who collectively together with her powerboat racer teammate, Sam Coleman, received the inaugural E1 title.
In keeping with Kimiläinen, adapting to the RaceBird was easy: ‘The steering wheel is from a system [racecar],’ she says. ‘The seat is a rally seat. The house is sort of a system cockpit. Every part from that perspective, together with my driving place, is sort of a racecar.
‘The driving itself, nonetheless, is fairly totally different, bodily. It doesn’t require a variety of turning energy. Fairly the other. It is advisable have silk gloves on and be light with the steering, like karting. So it does have motor racing similarities, however in a distinct [way].’
The racecar driver’s means to really feel the automotive by means of their physique isn’t misplaced in E1. Moreover, understanding when to regulate the foil’s angle requires related instinct to controlling a racecar’s stability.
‘That is the primary automobile the place I can arrange the entire automobile throughout the time I race,’ Kimiläinen provides. ‘Principally, in the event you’re not doing something, you’re doing one thing unsuitable. It is extremely necessary to continually learn the water, the situations and concentrate on different boats’ wakes.’
In motorsport, tyre efficiency modifications over the course of a race occasion as observe grip will increase, however there isn’t any such evolution in E1. This was one of many principal studying areas, and battlegrounds, in season one.
‘While you’re doing A-B-A testing of various set-up choices, you possibly can piece collectively what occurred to the observe within the time you’re doing the check,’ highlights Sturdy, ‘whereas on this, the water can change inside seconds. For instance, in Jeddah qualifying, there was one lap the place Emma was, for what appeared like no motive, 5 seconds slower than one other lap. It’s purely right down to water situations.’
When assembling a contemporary crew for E1, Sturdy and his co-team principal, Ben King, made the choice to go for the perfect of each worlds. Their strategy paid dividends as Group Brady received three of the 5 rounds en path to the title.
‘Once we had been making an attempt to piece collectively this crew, we took mechanics who had a cut up of expertise,’ explains Sturdy. ‘Some had been working in endurance racing, however certainly one of our mechanics has labored in F1H20, the very prime degree of powerboat racing, so we’ve acquired these totally different views coming collectively.
‘We’re making an attempt to maneuver powerboating in a barely totally different path to what we’ve accomplished previously, making an attempt to convey throughout a few of what we’ve realized in F1, Components E and WEC, and apply it to this new machine we’re engaged on.’
Proper on time
Certainly one of motorsport’s biggest exportable strengths is its means to satisfy tight deadlines.
This talent got here in useful when E1 was figuring out the part suppliers. It is usually why SeaBird enlisted engineers with racecar expertise, not only for their knack of doing issues shortly and precisely, however for his or her connections within the agile motorsport provide chain.
SeaBird goals to make use of E1 as a platform to showcase its sustainable powerboat expertise that it hopes to introduce to the broader marine market.
‘Now we have plenty of folks from totally different backgrounds, whether or not it’s aerospace, automotive or motorsport,’ says Baker. ‘We’ve had engineers from Purple Bull and Toro Rosso inside the group.
‘We’re very fortunate to have that mentality and strategy to designing and engineering a product. It results in a totally totally different mindset on the subject of how briskly you are able to do one thing, or what degree of element you go into. The angle is that we’ll get it accomplished, a method or one other, inside that timeframe.’
The RaceBird’s first shakedown occurred close to San Nazzaro on Italy’s River Po in July 2022. The inaugural season was focused for 2023, however that plan was scrapped in favour of extra testing, as the event crew understood run the electrical powerboat on foils and use the management techniques.
Throughout this time, motorsport experience was particularly helpful in validating the SeaBird for security. Comptech Engineering, a British firm specialising in motorsport bodywork, was contracted to hold out non-destructive testing and inspections. Actual-world crash testing was not a part of the UIM’s homologation necessities.
‘We don’t have the talent set in-house, however we’re utilizing the identical talent units and people who Components 1 are utilizing, to ensure our loaded elements are behaving themselves,’ explains Baker.
‘It’s ultrasonic testing or Eddy present testing, relying on whether or not it’s a metallic or composite construction. We’re additionally monitoring the fatigue of elements and the way issues degrade. Now we have zero historic knowledge, in contrast to an F1 crew, which has many years of knowledge to fall again on. [Comptech] introduced their tools to us and did the scanning, inspections and high quality audits for us.’
Voyage of discovery
The primary season of any new race sequence is sort of assured to be a rollercoaster. It was no totally different for E1, beginning with delivery the boats to Jeddah in time for the opening spherical.
This was sophisticated by Houthi missile and pirate assaults on business vessels within the Purple Sea, which triggered extreme disruption to worldwide delivery. The Jeddah occasion had been pencilled in for January however ended up going down a month later.
‘In Jeddah, we had a variety of mechanical points as a result of the boats had been lastly being pushed on the restrict,’ provides Basso. ‘Technically, as you’d anticipate, it has been a problem. We had so many issues on our record to be improved, and that we did enhance.
‘Even at Como on the finish of August, we nonetheless had some mechanical failures due to the precise circuit structure, however we managed to manage as a result of we had the best variety of spares, and we added some reinforcement to the components.
‘Being a racing automobile, naturally it goes by means of a variety of stress and pressure. You want the best strategy to deal with this on the final minute. This may be aggravating, however having racing folks on board, we knew that was the case, so we had been prepared and reacted fairly effectively.’
The weeks main as much as the inaugural race had been extraordinarily busy. McLaren Utilized and SeaBird held schooling periods, together with two days of ATLAS coaching, so groups might perceive use the electronics and hydrodynamics. There was a small quantity of seat time for the pilots, however most substantial operating solely occurred on the first race.
‘Main as much as Jeddah, we had a crew in Italy just about full-time getting pilots in control,’ confirms Baker. ‘We had been utilizing Prototype 2, which accrued a variety of hours as our fleet chief. If we had been recognizing points, we had been usually recognizing them on Prototype 2, after which making an attempt to repair these, primarily by means of software program.
‘We’ve acquired an advanced, Components E-on-the-water-style system. We had been navigating the challenges of when the pilot does one thing, and the boat reacts in an surprising manner. Numerous these had been resolved earlier than and through Jeddah and have positively been resolved since. Main as much as Jeddah was an enormous studying curve and an enormous check for us.’
Going ahead
E1 isn’t going to be each motorsport fan’s cup of tea. However even sceptics would possibly recognize that it has solely been potential due to the function of motorsport engineering. It has additionally benefited from the groundwork laid by the pioneering electrical racing sequence, Components E.
‘It’s issues like Components E and EVs which have began shifting the business in a path to the place it’s a low sufficient barrier financially, with lead instances, that you could truly go and develop an electrical racing boat,’ says Baker. ‘Sooner or later, issues just like the RaceBird will assist pace up growth for the remainder of the business. It’s a pleasant passing on of expertise from one sector to the opposite.’
Basso prefers to keep away from comparisons between E1 and Components E as a result of he needs it to face by itself two legs (or foils) and forge its personal path. His imaginative and prescient contains making E1 a spot the place firms can check and showcase their applied sciences. Within the shorter time period, he want to see the boats go a bit quicker, and to extend the battery capability and output, though he notes the present foil design is proscribed to round 70knt (129 km/h).
‘Now we have taken the state-of-the-art in that [motorsport] business and put it into our boat, placing collectively incredible gamers and suppliers,’ says Basso. ‘We needed to marinate the answer, which is an integration situation that we now have to this point overcome. Within the meantime, having the state-of-the-art from motorsport allowed us to speed up electrification within the powerboating business by not less than 15-20 years.’
Whereas the motorsport business was clearly integral in bringing E1 to the water, Basso would really like the dynamic to shift because the championship turns into extra established.
‘We wish to construct partnerships and expertise campaigns with the intention to be the driving force of the longer term,’ he concludes. ‘So, as an alternative of inheriting from motorsport and high-end automotive, I want to be the check mattress for future applied sciences, so all the opposite industries concerned in mobility can have the possibility to study and see what’s achievable. It’s a mission, and a should, for the racing business.’
