The normal handbook transmission could also be declining in recognition, however for the good majority of fans attending monitor days, highway races and autocrosses, the old-school stick-and-clutch setup remains to be the weapon of selection. We might even see a day when the need for true handbook transmissions in new automobiles is fueled extra by nostalgia than efficiency numbers, however they aren’t going away any time quickly.
And due to that, a lot of effort and know-how are nonetheless being poured into clutch growth by high-performance aftermarket firms and OEMs. So earlier than we dive into this particular part masking clutches, let’s evaluate just a few fundamentals and focus on why a clutch improve could also be one thing to contemplate.
How Does Clutch Magic Occur?
In your automobile to maneuver, there must be a mechanical connection between the engine and the drive wheels. Sounds easy, proper? However in your automobile to not transfer–which is one thing automobiles do often–that connection must be momentarily severed. In handbook transmission automobiles, that decoupling is dealt with by the clutch meeting.
In a typical single-disc clutch (we’ll take care of multi-plate clutches in one other a part of this part) there are two essential parts: The stress plate meeting is fastened to the flywheel of the engine, and the friction disc is hooked up to the enter shaft of the transmission.
The friction disc rides on a splined enter shaft and is allowed to “float” freely alongside that shaft. Its journey is constrained by the flywheel on one facet and the stress plate on the opposite facet. When the engine is popping, the flywheel and the stress plate meeting spin collectively. When the clutch is absolutely engaged, the stress plate presses the friction disc towards the flywheel, transferring torque from each the flywheel and the hooked up stress plate meeting to the clutch friction disc. This disc is hooked up to the transmission enter shaft, so torque can journey into the transmission and down the road.
Whether or not the throw-out bearing is actuated by a cable or hydraulic line, it does the identical primary job: It actuates the diaphragm spring, which lifts the stress plate from the floating friction disc and disengages the clutch. This facilitates each beginning the automobile from a standstill and shifting gears.
When the clutch pedal is depressed to disengage the clutch, the stress plate lifts off the friction disc, and since the friction disc is allowed to drift alongside the enter shaft, neither the flywheel nor the stress plate meeting can adequately switch any torque. The stress plate is lifted from the disc through a diaphragm spring hooked up to the stress plate.
A diaphragm spring is a disc-shaped spring that lifts its outer circumference when the interior half is depressed. That oversimplifies the significance of the diaphragm spring–a lot of clutch operation and really feel relies on the traits of this spring–however that’s the fundamental mode of operation, no matter what sort of clutch you’re speaking about. However there are many variables contained inside that primary system. First is friction.
When a clutch is absolutely engaged, a lot of the torque is transferred through the clamping pressure of the mechanical parts urgent towards one another. However friction between the clutch disc and the flywheel and stress plate remains to be a key issue–particularly through the engagement and disengagement phases of operation.
An excessive amount of friction and the clutch could be “grabby,” making clean begins troublesome. Too little friction and the clutch could not be capable of switch all the engine’s torque to the transmission–even at full clamp load.
Since we talked about friction, you already know that friction’s previous pal warmth is true across the nook. Warmth alters the friction traits of any system. Anybody who’s ever hit the brakes for Flip 10 at Highway Atlanta and gotten, “Doo, doo, dooooooo. We’re sorry, your braking couldn’t be accomplished as requested. Please hold up and check out your braking once more later should you don’t die,” is aware of that warmth impacts friction. We’ll discuss these ramifications in a minute.
The subsequent variable is driveline lash. When ranging from a useless cease, the clutch have to be engaged progressively and allowed to slide to get the automobile shifting till the pace of the enter shaft matches the pace of the engine. The engine can solely decelerate a lot with out shutting off, in order that pace imbalance have to be taken up by way of both clutch slip or, should you’re attempting to impress your posse, tire slip.
The drawbacks of regularly spinning the tires to get the automobile shifting are fairly clear to anybody older than 17 or so, in order that clutch wants to slide and progressively switch that torque till speeds match and it may be absolutely engaged.
Right here’s the precise {hardware} depicted within the above diagram. The friction disc, situated between the flywheel and stress plate, varieties the hyperlink between the engine’s torque and thrust on the wheels.
Nonetheless, friction slip is just not actually a linear course of. Sometimes, pressure builds between two surfaces to a degree the place the pressure overcomes friction in a reasonably sudden style. Even probably the most refined supplies will expertise this slip-grab-slip-grab cycle, which manifests as what we generally know as clutch chatter.

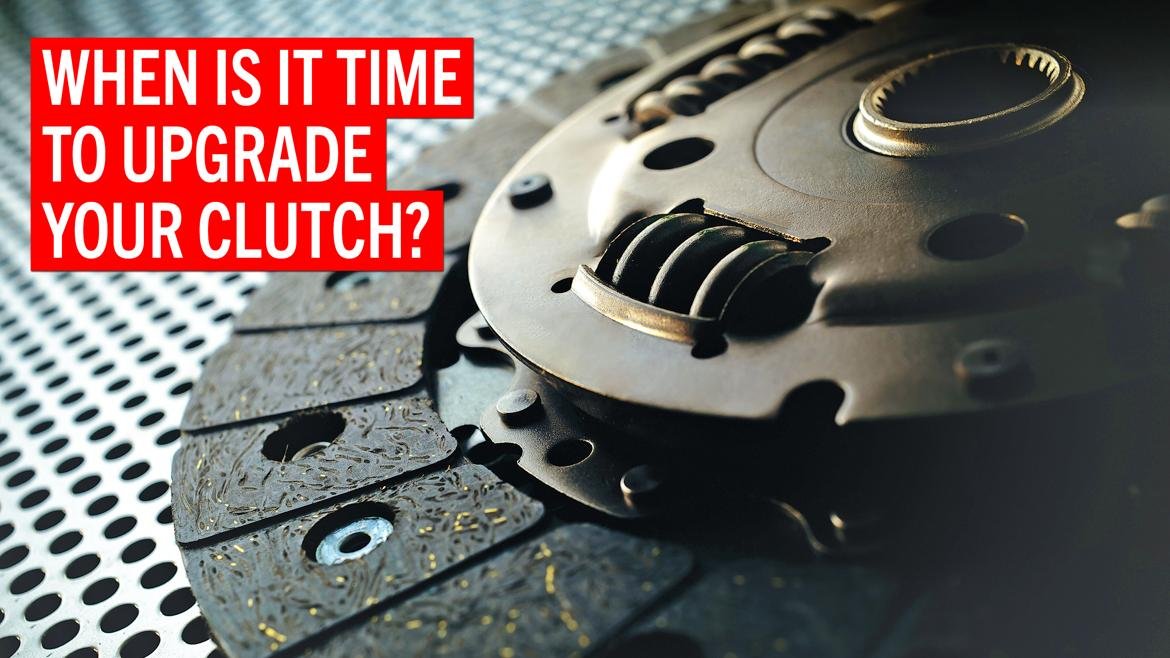

That is the place these springs on the clutch disc are available in. Most clutch discs are literally multi-part affairs, with a friction disc and a separate hub linked by springs. These springs compress earlier than absolutely transferring torque by way of the disc, offering a little bit of damping for any floor friction irregularities through the engagement section. Moreover, friction supplies or rubber or different damping supplies could be positioned between the hub and the disc to additional alter the results of variable friction on the engagement phases.
So, Why an Improve?
Now let’s have a look at why it’s possible you’ll wish to improve that system and the place to focus these upgrades.
Warmth Administration: You’ll have seen the phrase “friction” popping up within the earlier descriptions lots. Every time a clutch is disengaged after which reengaged, friction is produced because the clutch parts take up these mismatched speeds. Clearly, these friction occasions will likely be extra intense and extra frequent throughout a monitor lap that requires 10 high-rpm shifts than throughout a mild cruise down the freeway.
So, a high-performance clutch is designed with warmth administration and resistance as prime traits. Normally this manifests as completely different friction supplies on the disc–metallic and ceramic compounds as an alternative of natural supplies widespread in OEM clutches–however extra thermal-resistant supplies may even be used on the stress plate meeting as properly.
The tradeoff is often a extra aggressive friction attribute throughout engagement. Metallic and ceramic compounds have a better coefficient of friction than natural supplies.
Extra Friction: However that beforehand talked about tradeoff with metallic and ceramic compounds could be an improve of its personal. Extra friction means extra and faster torque switch at lighter clamping forces relative to natural friction supplies. Extra friction also can imply much less drivability, however fashionable clutch designers have achieved superb work to make high-performance supplies and designs extraordinarily livable.
Extra Clamping Pressure: Clamping pressure is necessary to the overall quantity of torque a clutch can switch, in order engine output rises, clamping pressure could must rise as properly. The clamping pressure of a clutch is dictated by the energy of the aforementioned diaphragm spring, and though some trickery could be achieved with arm lengths and leverages, extra clamping pressure usually implies that extra pressure goes to be required to actuate that spring.
That interprets to increased required pedal pressures. Once more, there are methods to mitigate these results: by way of tuning of finger lengths and fulcrum factors on the diaphragm spring; by way of the hydraulic actuation system of the clutch; and even by way of the rod or cable techniques that actuate the clutch on some automobiles.
Backside line: A rise in clamping pressure doesn’t all the time imply a completely corresponding enhance in pedal effort. In reality, a dramatic enhance in clamping pressure is often out there with solely a small enhance in pedal effort.
A number of particular person parts make up the clutch disc: The hub and friction plate are joined by springs damped by pliable materials that masks small imperfections in engagement.
Much less Weight and Polar Second: You’ll have seen that the heaviest a part of the clutch–the stress plate meeting–is hooked up to the engine. Which means everytime you need the engine to speed up, it has to spin up the mass of that clutch meeting as properly.
Decreasing the mass of the clutch meeting reduces the mass that the engine has to speed up, together with the general mass of the automobile. Decreasing the general diameter of the clutch reduces the leverage that its mass has, decreasing the pressure the engine wants to make use of to speed up it.
Excessive-performance clutches usually cut back weight by way of using lighter supplies, like aluminum and even titanium. Correctly utilizing these supplies–which could be expensive themselves–could require dearer manufacturing methods, pushing up the value as weight decreases.
Puck Clutches: What about puck-style clutches? All the purposeful ideas that we’ve mentioned about conventional full-disc clutches additionally apply to puck-style clutches, which exchange the total circle of fabric with a number of pucks of friction materials hooked up to a star-shaped disc.
Benefits embody, clearly, much less rotating mass, however the decreased friction space means clamping hundreds should enhance, so friction coefficients have to be increased. Due to this, puck-style clutches are usually just for competitors functions the place shifts occur rapidly and drivability is just not a priority.
