“I didn’t actually got down to be an inspiration,” says Robert Wickens, the IMSA driver who’s making his Nürburgring debut this weekend in a hand-controlled Hyundai Elantra TCR. “I simply need to compete within the sport I really like. And the beauty of motorsport is it’s the place I can nonetheless compete on the highest stage–with no concessions and no asterisks.”

Right here’s the elevator model of Robert’s story thus far: The 36-year-old Canadian was on observe to be North America’s subsequent F1 driver via the early 2000s and 2010s. Success in junior method sequence led to success in German Touring Vehicles, F2, F1 testing and a fully blazing begin in Indy vehicles in 2018.

After successful rookie of the 12 months honors on the Indy 500, Wickens had collected sufficient factors to clinch total rookie of the 12 months honors when he suffered a violent crash at Pocono that left his legs paralyzed. In 2022, he returned to motorsports, driving a TCR Hyundai with Bryan Herta Autosport and successful the IMSA TCR title a 12 months later.

[This is the unique hand-control setup Robert Wickens uses to win]

We acquired to spend a while with Wickens and the Bosch crew that’s creating the hand-control techniques he makes use of in each the Hyundai and the GT3 Corvette he drives within the IMSA WeatherTech SportsCar Championship. Wickens’ bodily skills are unquestionable, however the high-tech gear he’s utilizing on his journey is equally as spectacular.

Circling again to his feedback about competing on a fair taking part in discipline, Wickens referenced his different sporting retailers, of which the athletic racer has many. “After I compete in golf or biking or no matter, I’m competing in an accessible division. Motorsport is simply motorsport.

“So,” he continues, “to compete on the highest stage simply requires being quick. There’s no distinctions for being disabled or no matter, you simply both win otherwise you don’t. So to have this outlet in any respect is admittedly satisfying, by no means thoughts that it’s form of my chosen strategy to compete.”

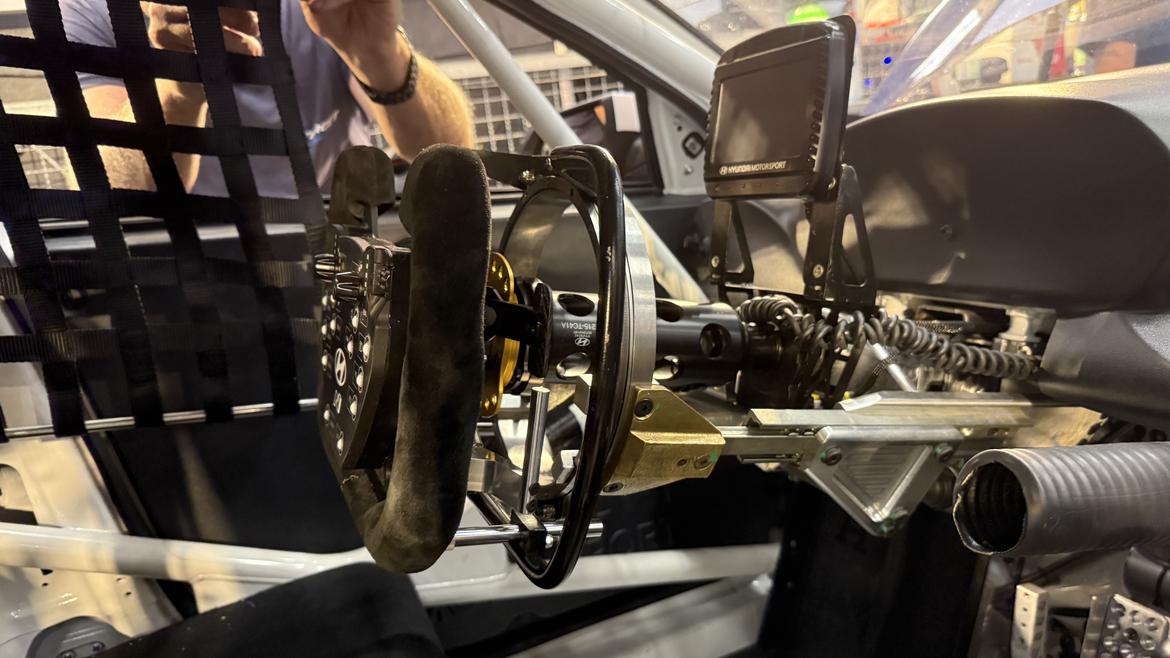

The gear that Wickens makes use of on his journey has seen some improvement since Bosch began on it in 2024, however advances in motorsport tech on the whole have streamlined the method considerably. The system makes use of a hoop that slides parallel to the steering column to actuate its personal grasp cylinder, which in flip feeds the automotive’s most important grasp cylinder, which triggers the Bosch digital brake items to function the brakes.

The large black ring is the brakes, and no, you in all probability can’t squeeze it practically as onerous as Wickens does lots of of occasions per stint. The smaller silver lever beneath is the throttle actuator. The paddles above these are the usual Elantra N TCR shift paddles.

“It’s form of a hydraulically actuated brake-by-wire system within the TCR automotive,” explains Bosch Motorsport engineer Jordan Krell. “Within the Corvette, the system is solely by wire, so the set up is way more compact. All of Robert’s gear matches on a single spacer between the common GT3 wheel and the column.”

The hydraulic system is plumbed in sequence. “We took the inspiration from drifting and their hand e-brake plumbing,” Krell continues. The setup within the Hyundai, although, kind of doubles the quantity of brake fluid to offer some reserve capability, since they’ve to modify backwards and forwards between hand and foot operation.

The remainder of Wickens’ controls are on the wheel as properly. The usual shift paddles are in place, however a swap on the middle console prompts hand-operated throttles on both aspect of the wheel as properly. The controls are synchronized aspect to aspect–the brake actuator is a single loop of steel across the wheel, whereas the throttle levers are linked by way of a linkage–which was an vital a part of the recipe in getting the system optimized for Wickens’ wants and needs.

“I discover I do most of my braking with my proper hand, which frees my left hand to make easy downshifts, which I do most of my accelerating with my left hand so I can upshift with my proper,” Wickens explains. “But it surely doesn’t all the time work that easily, and I love to do lots of path braking, so there’s occasions the place I can’t actually attain the brake lever with the correct power as a result of I’m turned thus far, so I’ve to have the ability to swap easily from hand handy on the fly.”

For simply these causes, Krell says one of many priorities of the system has been steadiness throughout either side of the management floor. This was significantly vital when creating the newest technology of the system carried out within the Corvette, which is solely digital, eschewing the hydraulic connection within the Hyundai.

“Rob’s suggestions has actually been big throughout the entire course of in getting the texture dialed in,” Krell says. “As engineers, we’re generally actually good at designing issues to work a sure manner however forgetting {that a} human in the end has to function them.”

Krell says their priorities with the system had been threefold: “Our massive touchpoints had been consistency, decision and latency.”

Discover that “suggestions” isn’t included in that checklist, which we discovered fascinating. Suggestions looks as if a key to a strong braking system, proper?

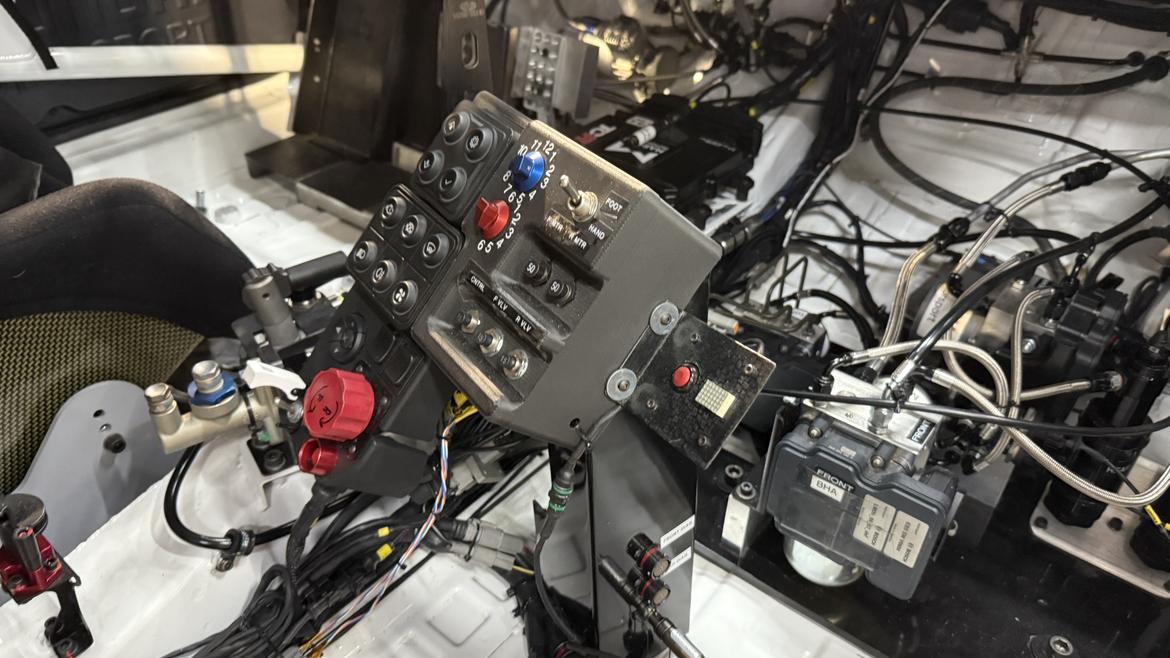

This tradition sprint panel serves as Wickens’ management heart for the Bosch hand-control system. The blue knob controls the achieve on the brake controllers, whereas the crimson knob is assignable by Bosch techs for varied capabilities and principally used for improvement functions. Because the supplemental system is plumbed in sequence with the usual brake controllers, Wickens adjusts ABS and brake bias via the standard wheel-mounted controls. The foot/hand toggle is fairly self-explanatory. Flipping it disables the foot controls and prompts the hand controls and vice versa. When Wickens is coming into the automotive, the able-bodied driver is liable for hitting the swap and disabling the foot pedals. This prevents Wickens, who braces his ft towards the pedals, from by accident activating the throttle.

“Suggestions actually turns into a byproduct of doing these different issues proper,” Krell notes, so Bosch didn’t construct any haptics into the controls, opting as a substitute to simplify the management loop and provides Wickens a extra direct hyperlink to no matter he’s activating.

Likewise, on the Corvette’s present setup, the brake lever makes use of positional information for actuation quite than load cells. “We discovered load cells had been delicate to temperature adjustments, the place positional sensors had been constant throughout the widest number of circumstances,” Krell notes.

Nonetheless, a system wants a sure tactile high quality to make the driving force comfy. For this, the Bosch group turned to strategies just like what sim racers make use of, utilizing bump rubbers to offer the “really feel” for the appliance of the brakes. “We did our homework on these,” Krell says. “They had been all examined on a shock dyno in varied temperatures to get a really particular and, once more, constant really feel.”

Nonetheless, the system takes a agency hand to actuate the brakes correctly. And that’s form of a gross understatement. Grabbing the brake actuation lever is lots like squeezing a thick dictionary. You may compress it sufficient to get to Y, however you aren’t attending to W and even X with out some critical effort.

“At some heavier brake pressures, it’s commonplace that I’ll need to put over 150 kilos of power into squeezing the brakes,” Wickens says, and even a cursory look at his thigh-like forearms confirms this assertion. “The trick for me has been discovering sensitivity on the average brake pressures.

“Getting instantly to threshold braking got here rapidly as a ability, however discovering the sensitivity for the decrease brake pressures in momentum sections has taken extra work,” he continues. “I discover that I’ll are inclined to both apply brake too slowly and sneak up on my brake stress, or apply an excessive amount of preliminary brake and it negatively impacts my momentum–which is hard on the Nürburgring, as a result of there’s so many sections that require manner lower than max braking.”

Even at that max braking stage, Wickens gained’t get an ABS pulsing, for the reason that system is essentially remoted from that part of the hydraulic circuit. As Krell places it, although, that’s probably not a giant deal. “At this time, with the digital braking techniques, we’re discovering that that type of suggestions actually isn’t a requirement.

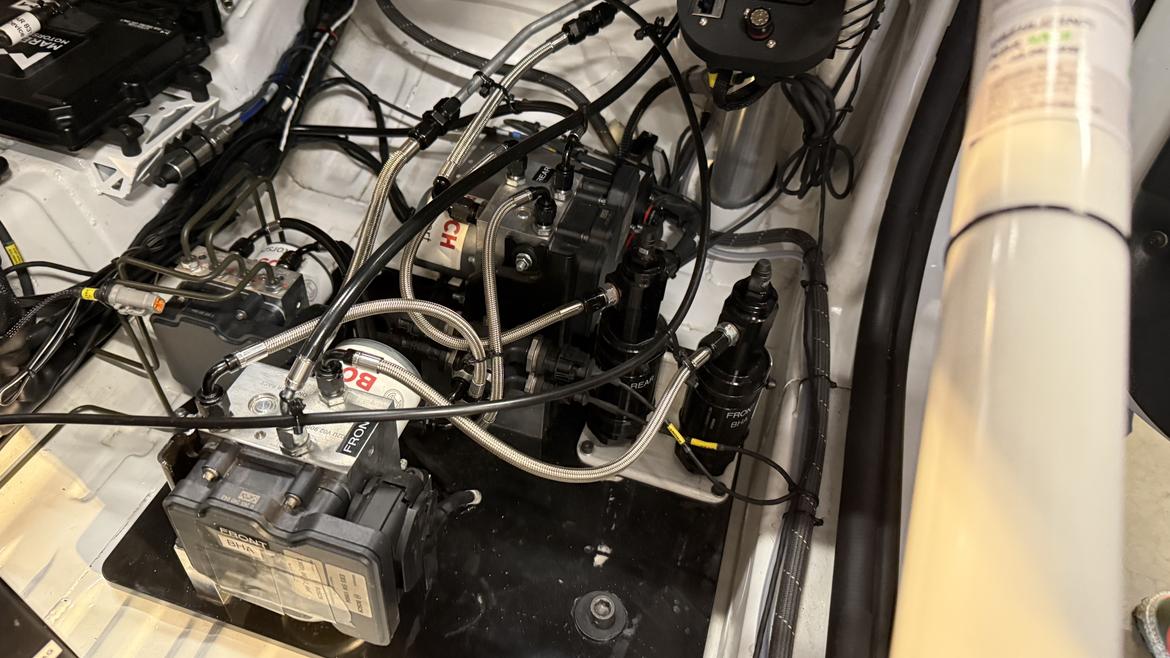

Entrance and rear digital brake controllers are just like what’s used on the rear of present IMSA GTP vehicles and sit on the passenger flooring, together with the ABS controller.

“We initially began engaged on presumably having extra haptics within the circuit, however we realized fairly rapidly that these race vehicles are actually high-vibration environments to start with. So perceiving tiny vibrations actually will get misplaced within the quantity of bodily enter that’s simply being produced all over the place within the automotive. We discovered it labored higher to simply give the driving force a really constant really feel with these controls and allow them to construct muscle reminiscence that manner.”

Wickens, after all, has needed to construct an entire new set of muscle reminiscences to grasp hand controls. However he took to it effortlessly.

“I discovered fairly rapidly that adapting to the controls was probably not that arduous,” he explains. “There’s a number of explicit methods I needed to work out, like braking into corners with lots of wheel enter and transferring arms throughout braking sometimes, however in any race automotive you get in, it’s important to work out particular methods, so that actually wasn’t a giant deal.

“What I discovered fairly fast was that I knew the right way to make a race automotive go quick, and the important thing to driving quick is in your mind, not essentially your ft or your arms or any particular physique half. So it was only a matter of utilizing my identical mind to work completely different controls to realize the identical aim.”

Hovering over the tech speak and the particulars of Wickens’ execution behind the wheel, although, was the larger image. A standard theme in motorsports is the “enhancing the breed” and “win on Sunday, promote on Monday” advertising ethos that largely justifies the existence of racing on the whole. The speculation is that expertise developed on observe finds its strategy to the road to make the vehicles we drive every single day higher. The fact, although, is that we often discuss that prefer it’s form of an abstraction. Race observe tech actually does trickle to the road, however the line is lengthy and infrequently straight.

Krell says the Nürburgring is an distinctive useful resource to seize mountains of information on the efficiency of the system. “Whenever you’re engineering one thing like this, essentially the most invaluable information is all these edge circumstances the place the automotive is doing one thing it doesn’t usually do. On the Nürburgring, just about each nook is an edge case, so we generate a lot of nice information right here.”

This expertise, nonetheless, feels completely different. It’s acquired an immediacy to it and feels prefer it may make an affect on lots of people’s lives on a really compressed timeline. That vibe will not be misplaced on Wickens and the Bosch group.

“Fashionable hand controls for highway vehicles are a number of the most janky-ass contraptions you’ll ever use,” Wickens says. “The setup in my van is mainly zip tied and hose clamped across the steering column, and I’ve to function it with one hand whereas I steer with the opposite. So yeah, it form of does really feel like this technique may evolve to one thing that would simply make individuals’s lives higher.”

Likewise, Krell exhibits lots of pleasure in regards to the implications of this undertaking. “Making race vehicles go quick is tremendous enjoyable,” Krell says, “and nobody is ever going to get bored doing that. However then we form of take a step again and take a look at what we’re doing right here and the way seamlessly this might adapt to highway vehicles and critically change lives, it form of hits you. I’m an engineer, so it feels bizarre adapting the advertising converse, however Bosch’s mission assertion is ‘Expertise for Life,’ and this actually seems like we’re hitting that.”

Bosch appears invested within the tech as properly. There’s a group of engineers on the Nürburgring supporting the system–Krell insisted that his teammates Jordan Good, Jeff Blair and Brooke Bond shared the credit score for his or her accomplishments.

“I suppose if I’m inspiring,” Wickens reluctantly says, “I actually simply need to be inspiring as a result of I get outcomes. This tech completely provides me a path to doing that. And the trail from right here to highway vehicles and making individuals’s lives higher is fairly straightforward to see.”
