When racers discuss aerodynamics, the dialog normally focuses on one factor—downforce—and it’s simple to see why. Wings, splitters, diffusers and all the opposite fancy aerodynamic units meant for race automobiles have one broad purpose, and that’s to extend downforce.
Downforce is nice and all, however there’s one other aspect of the coin, one it’s best to take into consideration everytime you’re wing buying: aerodynamic carry. It’s a nasty phenomenon that’s current on the vast majority of inventory automobiles, GRM favorites included.
The subject got here up on a latest tech name with Nine Lives Racing founder Johnny Cichowski, and he was more than pleased to stroll us by means of the fundamentals. What does Johnny find out about carry? As one in all newbie racing’s extra prolific producers of aerodynamic units, Johnny spends all day, day by day, fascinated by carry and one of the best methods to counteract it. And has the info to again up his assertion, due to NLR‘s frequent consultations with Morlind Engineering, a agency that focuses on race automotive computational fluid dynamics.
What Is Carry?
What’s aerodynamic carry? It’s the other of downforce, and the identical factor that makes planes fly. The physics are pretty easy: Unfavourable air stress above your automotive sucks it into the air.
Flip carry the other way up and it turns into downforce, the place detrimental air stress under your automotive sucks it onto the observe. And when you might not have ever considered carry, you’ve undoubtedly skilled it.
Most drivers describe it as a lightweight or floaty sensation at freeway speeds and above. That feeling isn’t only a results of going quick; it’s brought on by carry eradicating weight out of your tires, limiting traction and making the steering really feel gentle. That’s not good whenever you’re on observe and nonetheless want to manage your automotive’s momentum within the corners.
Why Do Most Vehicles Make Carry?
How may the world’s automotive producers let this evil drive creep into their merchandise? Once more, it’s easy physics, and the easiest way for example it, Johnny says, is to consider an airplane wing.
Airplane wings work by having a curved (convex) high aspect to hurry up airflow. As that air accelerates, it creates a low-pressure space above the wing. The underside of the wing is normally flat or concave, which slows down the air relative to the air above the wing. This creates a higher-pressure space. That distinction in stress between the air on high and under the wing leads to a drive that “lifts” the wing.
Most automotive makers are extra involved with components like wind noise and drag than aerodynamic carry. For extra road-going automobiles, the smoothest route for air to journey is normally excessive, leading to a car that has low drag but in addition some carry. That carry isn’t a difficulty at typical avenue speeds, however it may be extraordinarily disconcerting at observe speeds.
How a lot carry do regular automobiles make? Each mannequin is completely different, however Johnny shared just a few information factors from 9 Lives’ personal testing: A inventory C5 Corvette makes 80 kilos of carry at 80 mph and 280 kilos of carry at 150 mph; a Miata makes roughly 65 kilos of carry at 80 mph and 200 kilos of carry at 150 mph.
Most automobiles make extra carry over the roof, with a high-pressure space—detrimental carry or downforce—forming on the base of the windscreen or hood. This will result in some rear carry at larger speeds, although it depends upon the form of the automotive.
How Can You Take away Carry?
We’ve established that carry is dangerous and that almost all automobiles make it. What are you able to do about it?
Johnny, in fact, pointed proper to his firm’s trademark product, the Huge Wang. Simply bear in mind, you don’t really should eradicate carry; simply counteracting it’s completely high quality. And to try this, you’ll be able to flip to the same old racer playbook: Air dams, splitters, wings, diffusers, canards, tunnels, hood ducts and extra can all be a part of a profitable recipe to combat carry—even overpower it to the purpose of making internet downforce in your race automotive.
How do you determine which of the downforce instruments to make use of? Johnny says stability is extra necessary than all-out downforce, explaining, “For those who don’t discover the downforce, which means it’s balanced appropriately.”
What’s that imply in observe? Easy: You wouldn’t wish to have a 200-pound medication ball rolling round your cockpit on observe, as it will be tremendous unpredictable to have 200 kilos on the rear by means of one nook, then some other place by means of the following.
Unbalanced downforce can act similar to that theoretical medication ball, drastically altering the automotive’s weight stability because the velocity (and the aerodynamic parts’ effectiveness) modifications. Johnny says the purpose is for aerodynamic stability to have 3-5% extra rear bias than the general weight distribution, much like the automotive’s mechanical setup.
Considerably like aerodynamic stability, the purpose for lateral load switch distribution is round 5% extra bias than weight distribution. On this case, although, that bias is extra ahead. For instance, if the load distribution of a Corvette is 48/52, you ought to be aiming for an LLTD of 50-54% entrance with an aerodynamic stability of 43-45% entrance. Any lower than 40% bias could make driving at larger speeds significantly tough.

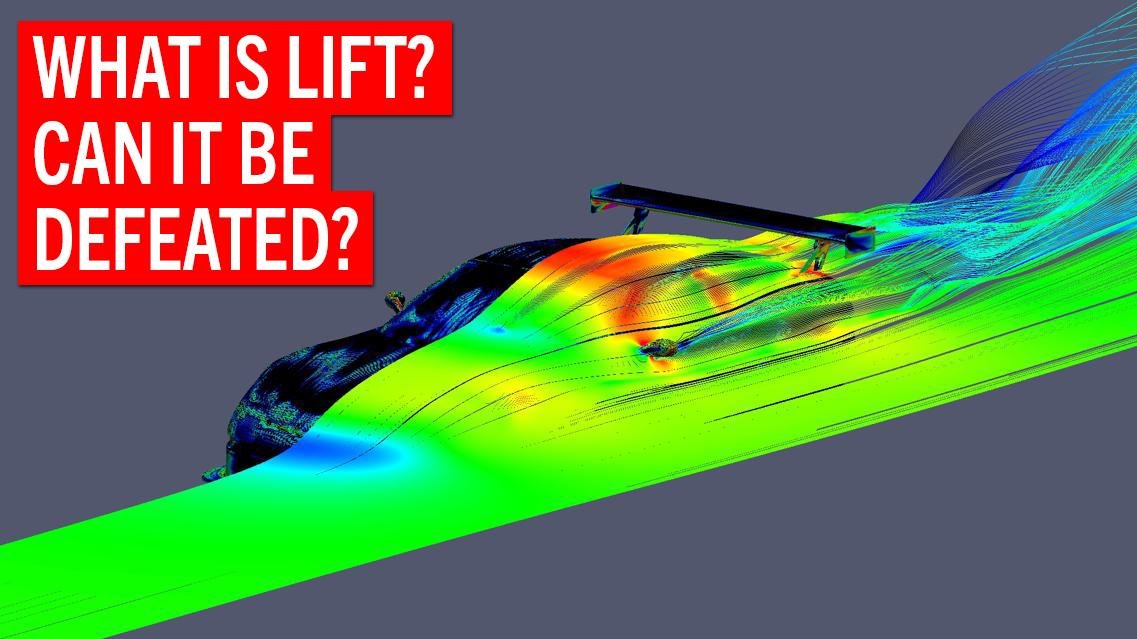

In fact, the stability query opens up an entire new can of worms: How a lot downforce are your aerodynamic parts really making? 9 Lives Racing and another distributors publish information for widespread platforms and mixtures. 9 Lives additionally has a strategic partnership with CFD agency Morlind Engineering—which has helped the corporate develop just a few merchandise, together with splitter ramps and downforce packages for sure functions—if you happen to’re enthusiastic about extra superior modeling and testing of your particular automotive.
What if you happen to don’t have revealed information or an engineering agency that will help you stability your setup? It’s attainable to do your personal aerodynamic evaluation at house, however that’s a subject for one more article. For those who’re curious, we’ve written extensively about DIY aerodynamic testing up to now, and we host a whole forum dedicated to aerodynamics. In any other case, the reply is testing, testing and extra testing. So long as you bear in mind carry—and the methods to combat it—you’ll make your automotive sooner and simpler to drive.
