Within the hierarchy of automotive dreads, rust restore and wiring rank close to the highest for most individuals. Rust restore we get, however wiring doesn’t must be a nightmare. In any case, a wire simply goes from one place to a different. How onerous can that be?
The issue is there’s at all times a couple of wire. And people wires connect with issues. And terminals are sometimes of poor high quality or improperly used. Then, all these wires and terminals get put in a bundle. And that bundle is normally made very haphazardly. And it seems like a large number. As a result of it’s a mess. Worry and dread: validated.
But it surely doesn’t must be that method. If wiring is completed neatly, utilizing high quality terminals and proper crimping, the work may be satisfying and can not often fail past put on in switches, relays, motors and different parts. And if it’s executed with servicing these parts in thoughts, repairs are very fast.
We lately rewired a Manufacturing facility 5 Kind 65Coupe. The automotive was constructed greater than 10 years in the past and was outfitted with an American Autowire common wiring harness package. The set up was past sloppy, and the automotive had skilled typical gremlins and poor-quality “repairs” ever since.
Every “restore” was treating a symptom as a substitute of curing the core lack of neatness and high quality connections, so we pulled every thing aside and mainly began over. We had been capable of save the harness as we did this. (By the best way, Manufacturing facility 5 now affords purpose-designed wiring for its automobiles, so the corporate has made it simpler to keep away from all these issues.)
Observe alongside as we flip a large number right into a tidy, reliable and serviceable wiring harness that gained’t encourage worry within the subsequent particular person to work on it. In future installments, we’ll cowl extra in regards to the instruments, terminals and strategies for wiring success. We’ll additionally train you the best way to construct a harness from scratch–with and with out a package. Persist with us, and also you’ll be capable of take away wiring from your personal hierarchy of automotive dreads.

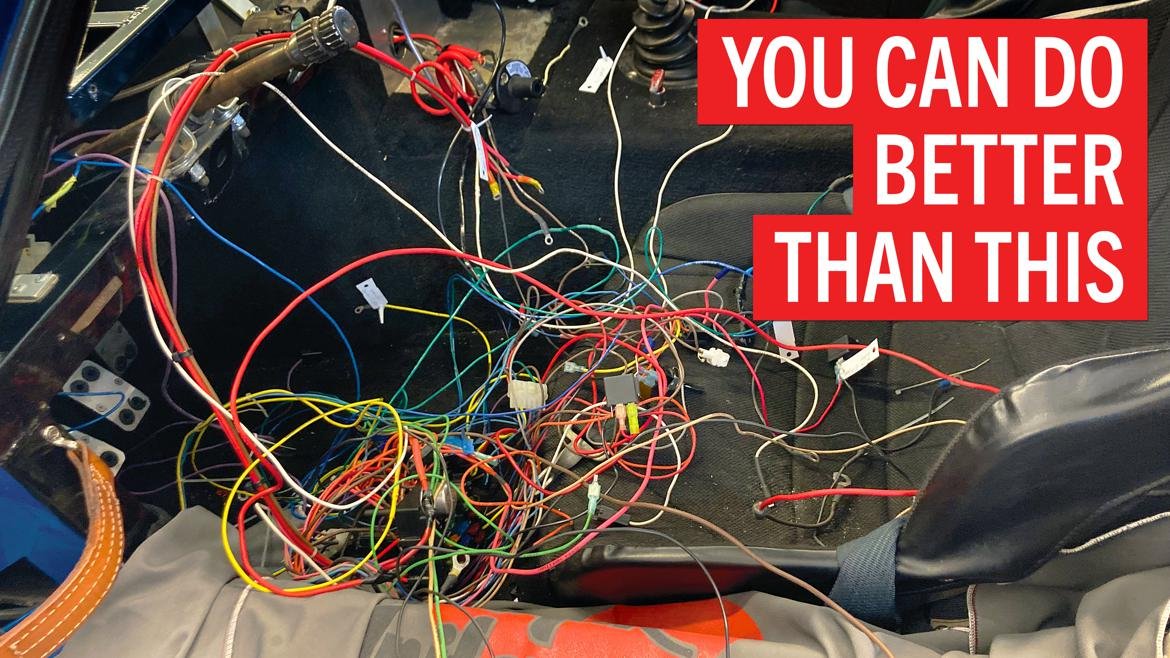

1. Once we pulled the dashboard out of this Manufacturing facility 5 Coupe, we discovered a typical wiring mess: wires of all colours and lengths, some as much as 6 ft too lengthy, plus relays that couldn’t be serviced with out eradicating the dashboard. Terminals ranged from high quality and correctly put in to tape and wire nuts. Overheated and partially melted wires and terminals had merely been left in place. We had a number of work to do.
2. After spending a little bit time making an attempt to treatment issues in situ, we realized we’d save time by eradicating the fuse field and important dashboard harness from the automotive. We labeled and photographed every thing earlier than pulling it out so we had good references for later.
The best option to make wiring serviceable is to untangle the mess and neaten every thing. Our neatness guidelines embrace not crossing wires; retaining applicable wires bundled collectively, typically in subbundles; and retaining lengths precisely applicable. This neatness takes time.
3, 4. Alongside the best way, we discovered some wires tangled proper at their multi-wire connectors. We de-pinned these connectors and arranged the wires, ensuring to maintain them in the proper place and never cross them. On this case, we used some non permanent zip-ties to maintain the bundle neat.
5. A few of our multi-wire connectors had melted. Happily, American Autowire sells replacements, so we reterminated the wires after which neatly inserted them.
6. At this level, we had the harness roughed out. We used extra non permanent zip-ties to maintain the subbundles organized. We might then reinstall the fuse field and harness and work on routing and neatening the subbundles.
7. Coping with 15 to twenty circuits and a number of colours may be overwhelming. The American Autowire harness had printed circuit names on the wires, in order that made the job simpler for us (and fewer reliant on a wiring diagram). The place we would have liked extra data, we received out the tape and Sharpie to label issues.
8. We then neatened every subbundle. After figuring out applicable lengths and reterminating wires as vital, we neatly held collectively the wires within the subbundle with zip-ties, ensuring they didn’t cross one another. That is a part of our technique for simplifying future service, as any wire may be simply seen and traced. If, for some purpose, a wire must be eliminated or added, it may be executed with out disturbing the remainder of the bundle.
Lastly, we routed the wires alongside applicable paths and connected them to the supporting construction. Observe that we use zip-ties to bundle wires or connect these bundles to supporting construction, however by no means each without delay. This permits us to tug a subbundle from its supporting construction for service with out messing up the bundle.
9. As we assembled every subbundle, we did our greatest to check our work. We’d usually connect a fused energy supply to the subbundle after which decide that the element was working correctly. If we couldn’t take a look at the element, we’d use a multimeter or take a look at gentle to ensure polarity and continuity had been applicable.
[How to solve common electrical issues with only a test light]
10, 11. Unsupported multi-pin connectors are a reasonably large sin: They’re comparatively heavy and eventually are inclined to shake themselves free, even with high quality snap connections. So we try to connect and assist them to some construction. On this case, we made some brackets to zip-tie them in place. We had been cautious to find the connectors and brackets in a spot the place they could possibly be reached with the sprint in place for future service and restore.
12, 13. These relays had been beforehand put in in a spot fully unreachable with the sprint put in. Since relays fail now and again and have to be serviced, we relocated them inside straightforward attain. We additionally transformed their connections from 4 particular person wires and terminals to 4 terminal multi-connectors sourced from Terminal Provide. Lastly, we labeled them.
14. A number of hours later, the sprint wiring was beginning to look moderately neat. Virtually all of the zip-ties within the image are nonetheless non permanent. A number of instances, we discovered ourselves including or rerouting wires within the large bundle as we cleaned up subbundles or relocated parts.
15, 16. The subbundles behind the gauges didn’t begin as such a large number, however we had been nonetheless capable of clear them up a bit.
17. We lastly had a dashboard harness that wasn’t scary. We put the ultimate set of zip-ties across the bundles and strapped the bundles to their helps earlier than putting in the dashboard and doing one final take a look at.
