“When the cellphone rings and it’s somebody constructing a brake system from scratch, that’s truly a very enjoyable time for me,” says Michael Hamrick, one in every of Wilwood’s high tech specialists. “That’s after we get to actually kind a relationship with somebody and discuss to them, finally, about what will make their automotive extra satisfying to drive.”
As luck would have it, this was a course of we wanted to undergo as effectively. We’d just lately acquired a challenge that was effectively out of our consolation and expertise zone, and that advanced new challenge would want brakes.
So Hamrick proposed just a little roleplay train: We’d name up and play the function of a inexperienced buyer, somebody who solely is aware of they don’t wish to hit a tire wall after stomping an unresponsive center pedal. (To be honest, that isn’t a lot of a stretch.)
Hamrick would then stroll us via the method of designing a brake system from scratch. What did we be taught? The way to convey motorsports must a motorsports provider.
What Are Our Wants?
Let’s begin with the topic of this inquiry: a former ASA stock car chassis, No. 404 to be exact, in-built 2004 for the now-defunct American Velocity Affiliation racing sequence. It’s one in every of our newest challenge automotive acquisitions.
ASA supplied a NASCAR different, one which welcomed numerous large names and cutting-edge expertise to inventory automotive racing–effectively, cutting-edge expertise for that venue, like gasoline injection.
[Learning more about tube-frame race cars | ASA tube-frame racer]
Our automotive, like each automotive within the sequence, began with a middle part–the a part of the chassis between the entrance and rear firewalls–constructed by Howe Racing. In some instances, just a few totally different builders then completed out these heart sections with their very own entrance and rear subframes that met the ASA specs. Our automotive was accomplished by Lefthander Chassis and options symmetrical entrance and rear subframes, though a number of the suspension bits are asymmetrical and biased for oval observe use.
Our chassis additionally got here with numerous Wilwood braking elements, though they’re largely period-correct for 20 years in the past and designed for oval tracks. We went in understanding some updating can be required, as we plan to reorient the automotive for street course use. So we wanted brakes that might deal with a 2700-ish-pound, 500-ish-horsepower automotive on foot-wide slicks. They usually had to have the ability to do it at locations like Daytona and Sebring.
Let’s Chat About It
“When somebody calls up who’s staring from sq. one, I virtually deal with it like a primary date,” Hamrick explains. “It’s all about attending to know one another and understanding the wants, expertise and habits of the driving force so we are able to design round them.
“In the case of the {hardware},” he continues, “there are virtually infinite choices, though there are some limitations sometimes. So actually the very first thing I wish to know is what does the driving force like?”
If that each one sounds just a little touchy-feely, effectively, brakes are sort of like that. As we’ve overwhelmed half to loss of life in every bit of brake editorial, brakes are the simplest speed-changing system in your automotive, so maximizing their effectiveness is paramount to reducing lap instances–and to constructing a automotive that’s extra satisfying to drive.
A great provider will wish to find out about your expertise. What have you ever pushed previously, and what did you want–or not like–concerning the brakes? The provider may also ask about your common driving tendencies–neat and tidy or toss and catch?–in addition to your targets for the construct.
“Even non-automotive background data may also help us construct a psychological profile of what we’re making an attempt to realize,” Hamrick says. “Do you trip horses or bikes? Did you construct your final laptop or purchase it? Ever do any dancing or play soccer? All of these things may give us perception into components like the way you relate to mechanical units as a person, how technically inclined you’re, and even how developed and the way a lot sensitivity your leg and foot muscle groups have. All of that goes into our brake system equation.”
Our dialog opener centered on our most up-to-date mount–a 550-horsepower C5 Corvette fitted with power-assisted brakes–and the way we had been shifting right into a automotive that may simply be the equal or higher of the Vette however at a a lot decrease degree of sophistication.
Armed with that data, Hamrick might begin making some generalizations, though we nonetheless weren’t within the realm of specifics but. “So the brake setup that’s on the automotive now might be pretty rear-biased,” he figured of our ASA automotive. “That was typical of oval observe vehicles, as they use the brake for nook entry as a lot as they do pace adjustment. So it in all probability has equally sized entrance and rear rotors [diameter, yes, but width, no] and a few older, pretty small four-piston calipers [also correct].”
With these generalizations out of the way in which, we mentioned our specific braking philosophy, which largely consists of “Give us all the brakes.”
Realizing that, Hamrick then moved to one of many subsequent elephants within the room: “Popping out of that C5, you had 14-plus-inch rotors and power-assisted brakes. And right here you’ll have a automotive that’s perhaps a bit lighter however might be going to have extra grip on true slicks and be able to speeds simply as quick, if not quicker, in a straight line. So I’m guessing you’re used to a comparatively mild pedal?”
Yeah, nailed it.
“So what we’ll should do is figure backward from the corners and attempt to tune the hydraulics to your liking,” Hamrick mentioned. “And I believe you’ll be pleasantly stunned with the trouble. We are able to spec handbook brakes to have pretty mild actuation.”
This new setup wouldn’t really feel precisely like energy brakes, however we’d decide up superior really feel and full independence from engine vacuum. “Guide brakes are going to be precisely the identical each time you hit them at any pace,” he famous.
Now to Focus on {Hardware}
At this level, we’d already discovered quite a bit about what we needed and wanted earlier than any point out of particular components. As we’d be taught, that’s an necessary a part of the method.
When discussing a brand new construct, Hamrick explains, he’d relatively begin with targets than half numbers. “Our clients are usually educated and technically savvy,” he explains, “however additionally they won’t have up-to-the minute data on the most recent expertise that we could be providing, or know easy methods to combine and match bits from disparate components of our catalog that might not be grouped collectively on the web site.”
For us, that meant main into some recommendations. The cool factor about our new automotive, Hamrick mentioned, is that it’s principally a budget-friendlier model of a TA2-class Trans Am racer: 550 horsepower, tube-frame chassis, strong axle and 15-inch wheels. “So we are able to begin by leaning on the identified portions from that sequence and adapt from there to fit your particular wishes,” Hamrick informed us.
His first advice was to interchange our outdated bracket-mounted calipers with radial-mounted calipers. This, he defined, would permit us to suit a bigger rotor inside these 15-inch wheels–principally, we’d have the option run the TA2 setup that matches a 12.375-inch rotor with six-piston calipers.
And, he continued, those self same radial-mount calipers would permit us to run even bigger rotors ought to we determine to maneuver to 18-inch wheels paired with IMSA-spec slicks. “With a radial-mount caliper,” he defined, “you might have some leeway to area out that caliper from the hub and match a bigger rotor that can be utilized together with your bigger wheel package deal.” Choices are at all times good.
Floating rotors–the place the rotor and heart hat are joined through sliding fasteners–had been additionally talked about as a necessity. Per Hamrick: “This automotive is rarely going to the grocery retailer. The one time the brakes will ever be used will probably be in high-demand conditions, which suggests a lot of quick heating adopted by exhausting cooling as a result of excessive speeds adopted by quick heating, and so forth.”

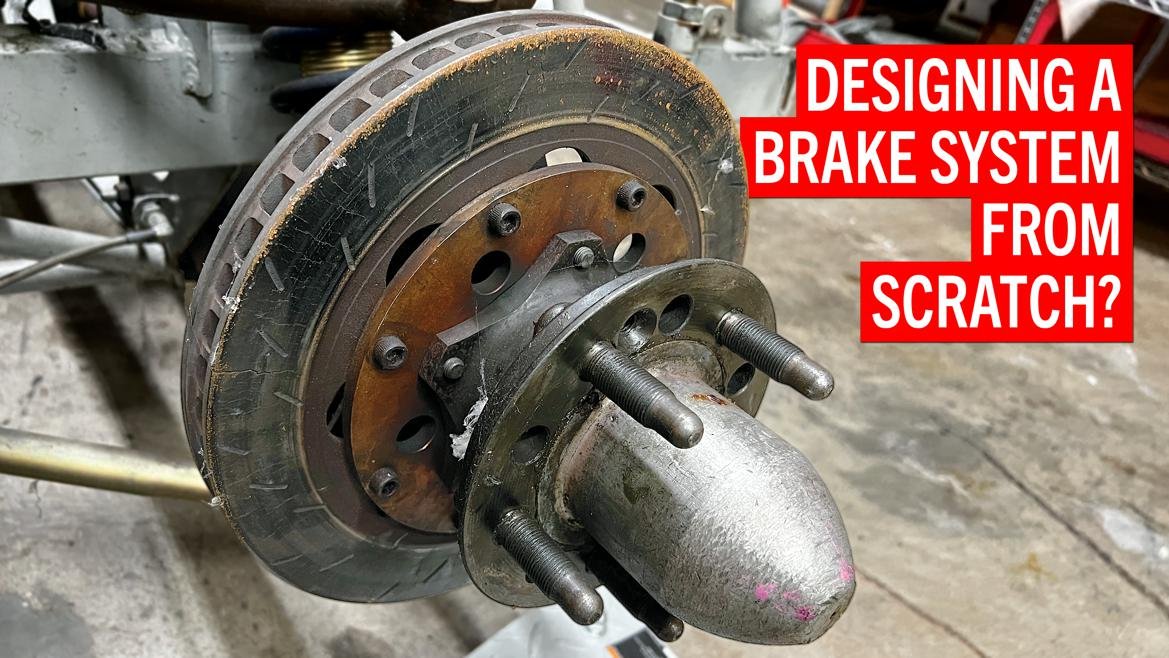

Our automotive got here sporting two-piece rotors, however the outers had been fastened to the hats. Floating rotors, which permit the iron rotor to increase and contract independently of the aluminum rotor hat, ought to result in much less warping and cracking.
The floating-rotor setup would allow us to run light-weight, aluminum heart hats with conventional iron rotors. The sliding fasteners permit the 2 dissimilar metals to increase and contract at their very own charges. If these two elements are solidly bounded collectively, Hamrick defined, they might warp after which crack close to the fastener junctions.
Homework Project
When our name concluded, we nonetheless didn’t have a complete record of components, however we had a strong plan of motion. And that’s additionally one thing Hamrick needed to drive house.
“While you’re ranging from basically nothing–and generally even if you’re upgrading an current automotive with out numerous prior improvement–keep in mind that it’s a course of, not a product,” he cautioned. Your supreme setup won’t contain a easy SKU; you would possibly want to combine and match.
At this level, we had homework: Totally element our present setup, together with measurements, half numbers (if potential), and photographs exhibiting tools each on and off the chassis so area clearances may be decided.
And it’s not concerning the calipers and rotors. How do our pedals mount? The place will all of the strains and grasp cylinders go? It’s a reasonably complete task, however in the long run we’ll have a system tailor-made to our very wants.
We really feel this expertise is a microcosm of every little thing else to return concerning this automotive: a lot of analysis, a lot of dialogue, a lot of choices, a lot of expertise and many leaning on specialists. To get essentially the most out of that final merchandise on the record, communication is as necessary as components.
