How to build an effective splitter for only $100 |...

Laying Floor Guidelines

Time for our normal disclaimer: Earlier than you construct something on your automobile, learn your rule e book. Most lessons restrict what you are able to do, particularly on the subject of aerodynamics, and your splitter shall be ineffective for those who’re not allowed on observe with it.

Our open rule set–NASA’s TT2 class permits splitters that protrude so far as 12 inches from the entrance of the automobile–meant we didn’t have a lot to fret about on this division.

Supplies and Form

Due to Morlind Engineering’s aerodynamic evaluation of our 350Z, we already knew which measurement and form of splitter would theoretically make our automobile quickest. However what for those who don’t have that ace up your sleeve? Begin with generalizations, construct a couple of iterations, and experiment from there.

First, take into consideration the underside of your automobile: How far again ought to your splitter go, and the way broad ought to it’s? The reply to each questions is sort of all the time, “As a lot as potential.”

Flat, clean bottoms make extra downforce and fewer drag, and that’s superior for a race automobile. Most rule books restrict how far again your splitter can prolong, however it is best to goal to get it a minimum of to the centerline of your entrance axle. The farther again, the higher.

We determined our splitter ought to prolong to our entrance axle centerline, since that was a handy mounting level and would save us supplies. We’ll add a flat backside to our automobile down the highway.

Morlind Engineering’s digital wind tunnel work didn’t simply produce these fairly, colourful graphics. It confirmed us what to position the place. Now we had a blueprint for our wing, splitter and different aero add-ons.

Subsequent, how far out ought to the splitter prolong? That is the place computational fluid dynamics, aka CFD, actually exhibits its strengths. It instructed us precisely how huge our splitter wanted to be to stability our chosen Nine Lives Racing rear wing.

Splitters might be manufactured from comparatively cheap plywood, so there’s no disgrace in constructing a number of sizes and experimenting throughout a take a look at day. And bear in mind, most rule books restrict how far splitters can prolong.

Lastly, there’s the form of the splitter. Ought to it’s a flat sheet? Ought to there be ramps? Partitions? Ought to the corners be rounded or sq.?

As we realized in our final installment, these options can have a big effect on how a lot downforce and drag your automobile makes. We determined to construct our splitter with ramps, despite the fact that our CFD research concluded they wouldn’t be efficient except paired with dive planes. We’re planning so as to add these components subsequent time.Plus, they’re lovely items of handmade Morlind Engineering carbon fiber. When in Rome, proper?

So, what kind of unique materials would we use to make our splitter? Carbon fiber? Fancy space-age composite? Foam?

Nope, plywood. Why? Nicely, as a result of we requested the specialists. 9 Lives Racing proprietor Johnny Cichowski put his personal V8-swapped Miata via the wringer, testing all method of splitter supplies over the previous few years. Ultimately, he settled on two most well-liked choices, each of that are in his catalog.

“Proper off the bat,” Johnny C. explains, “prepreg carbon fiber is the perfect splitter materials. Interval. It’s extremely mild, stiff and sturdy.”

However, he provides, it’s additionally costly. “Even after bringing the whole course of in-house,” he explains, “full with the large autoclave and the whole lot, a carbon-fiber Miata splitter prices the patron $900 to $2700. The efficiency may not be value hanging a lease verify 2 inches off the bottom.”

What’s the lower-buck choice? Excessive-quality, half-inch birch plywood.

“Options like foam, Alumalite and comparable all have been examined,” he explains, “however the required bracing to make them inflexible sufficient for aerodynamic responsibility made them heavier than the birch choices. Possibly that’s why the European Area Company makes use of birch in its testing. Then there’s the value distinction: A birch splitter for a Miata prices lower than a couple of hundred {dollars}, and that features a powerful proprietary rocket nostril coating to seal it from the climate and forestall skids.”

Mounting

We’d picked a form and a fabric, so now it was time to consider the following piece of the puzzle: mounting the splitter.

Splitter mounts have to be mild, stiff and simply replicable in case of injury. If a splitter flaps round, it should unpredictably change the quantity of downforce it makes, which implies slower lap instances and even harmful conduct.

And if the entrance of the splitter deflects sufficient to the touch the bottom, it should block all airflow below the splitter. No airflow means no downforce, which is why a flapping splitter can abruptly take away all entrance downforce mid-corner. That’s unhealthy.

The $100 Technique: Tips on how to Construct a Splitter in Your Storage

Sufficient with idea, let’s construct a splitter. The 1st step? Measure the automobile, which implies it’s essential to know two key issues: what the define of the splitter will seem like and the way it will mount to the automobile.

Measuring the define is straightforward. Seize an enormous piece of paper or cardboard, park your automobile on prime, and put the automobile on jack stands (or in our case, on the carry). Then, utilizing a plumb bob on a string, hint the define of your entrance bumper onto the paper with a Sharpie.

The aim isn’t to attract your splitter’s remaining form, however relatively your bumper’s form. This offers you a comparatively exact baseline to measure out from. Want a splitter that protrudes 4 inches? Utilizing a ruler, draw a line 4 inches away out of your first. Identical to that, you’ve drawn your splitter profile.

To fill in the remainder–cutouts for the wheels and the rear of the splitter–pair this identical plumb bob approach with a tape measure and a ruler. It doesn’t must be excellent, and you may all the time trim the perimeters after a take a look at match.

Time for the following problem: mounting factors. These are totally different for each chassis, so subsequent it is best to pull off the entrance bumper and go searching. Discover a couple of sturdy locations that may assist each the load of the splitter and the downforce it creates–about 300 kilos in our case.

Up entrance, we’d set up a splitter. The low-buck technique entails pen, paper, a plumb bob and a while.

Mounting the splitter stage with the underside of the automobile is an effective beginning place, although you could need to play with splitter rake sooner or later. Bonus factors for including adjustability to your mounts.

Don’t neglect, your splitter gained’t make downforce simply on the entrance edge–the power ought to be pretty evenly distributed throughout the whole underside–so design your mounts accordingly.

After a couple of minutes of trying round with Johnny C., we had a plan: We’d use our 350Z’s bumper beam bolts to assist the entrance of our splitter, whereas the rear would connect to manufacturing unit threaded holes within the entrance subframe with 4 bolts. Excellent.

However how do these bolt areas correlate with the define you drew? Tie a loop into the string in your plumb bob, and also you’ll be capable to bolt it on to the mounting factors you propose to make use of. Mark these areas on the paper, then measure the size of the plumb bob’s string to find out the bolt holes’ relative peak to the automobile’s different options.

Identical to that, you’ve discovered the way to document a reasonably correct location in three-dimensional area of every related a part of your splitter mount. Pair this data with CAD, that means both cardboard- or computer-aided design, and you may design a splitter and mounts that match completely the primary time.

With our design completed, it was time for a visit to the splitter superstore, that means no matter your native taste of residence enchancment warehouse known as. Purchase a sheet of high-quality, half-inch plywood, a jigsaw, some 1/8×1-inch 5052 aluminum bars, and some spray cans of truck mattress coating. (The additional-tall cans appear to work finest.)

Combine these substances together with your cardboard template, and after a couple of hours you’ll have a surprisingly sturdy and lightweight splitter for lower than $100.

The $100,000 Technique: Tips on how to Construct a Splitter in a Multimillion-Greenback Skilled Racing Advanced

We’d realized the way to construct a splitter the old style approach, however how do the professionals do it? To search out out, we introduced our 350Z to the house of Morlind Engineering and 9 Lives Racing, a sprawling race complicated stuffed with unimaginable instruments. Living proof: We constructed this splitter a couple of ft away from an additional Nissan DeltaWing someone left mendacity round.

Morlind’s proprietor, Rob Lindsey, agreed to stroll us via the design course of, which occurs fully within the pc. It begins with 3D-scanning the automobile’s entrance bumper. Since we’d already scanned our 350Z for final installment’s CFD work, that half was simple.

Subsequent, it was time to design the mounts. Somewhat than measure with a string and a plumb bob, Rob walked to the tools closet and grabbed one thing significantly better: a FaroArm.

What’s a FaroArm? It’s a measuring instrument like your tape measure, however that’s type of like evaluating a sextant to a GPS unit. A FaroArm is technically a model of coordinate measuring machine, however it’s turn out to be the Kleenex of the style.

The arm is aware of the exact angle of each joint, and it’s moved round by hand to the touch the tip to totally different components of the automobile. FaroArms are a five-figure monetary funding, however they’re invaluable for duties like these. The arm is aware of precisely the place the tip is inside a couple of thousandths of an inch, even throughout distances so long as the whole entrance of our 350Z.

Or you possibly can go the high-tech path to that splitter, using CNC machines, a FaroArm and composite add-on ramps.

Utilizing this instrument, Rob measured each mounting bolt we’d deliberate to make use of in about 5 minutes and immediately put these measurements into the pc to pair together with his splitter profile. After some CAD time planning brackets, the splitter was full. Rob had designed bolt-on mounts that had been peak adjustable, sturdy and simple to assemble.

As soon as Morlind was completed designing our digital splitter, the store beamed it over to its manufacturing companion, 9 Lives Racing, to be put into manufacturing. Not surprisingly, there’s no jigsaw concerned on this course of. As a substitute, we watched as proprietor Johnny C. created toolpaths, then fired up an enormous industrial CNC router to chop our splitter from half-inch birch plywood.

The splitter headed out to get its rocket nostril coating, after which we watched the router change bits and minimize the mounts out of aluminum. After a couple of bends, a couple of rivets and a few powder coating, our $100,000 splitter was prepared to put in. Not less than, it could have price $100,000 if we’d purchased all of the instruments to copy this course of ourselves.

After we completed prototyping the splitter on our 350Z, 9 Lives Racing added each half concerned to its catalog: the splitter ($376.92), mounts ($275) and ramps ($445), bringing the entire to $1134. And for those who’d relatively simply skip the measuring a part of constructing your individual, 9 Lives Racing will promote you a paper slicing template for $10.99.

Bolting It Up

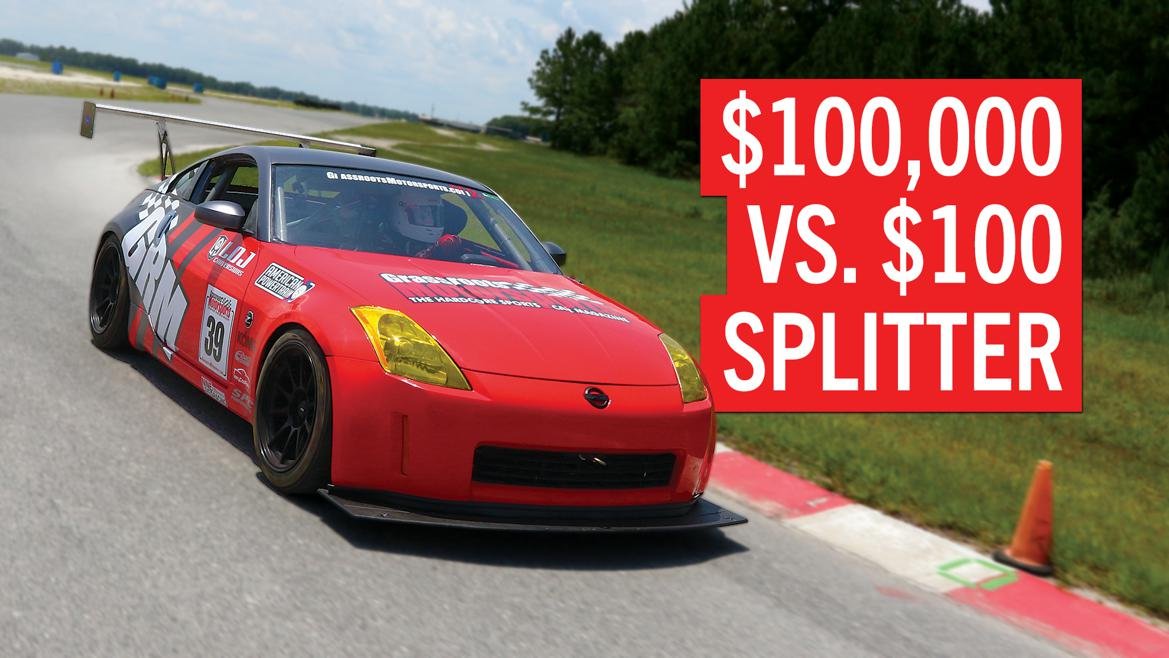

Splitter constructed, we put in it on our 350Z and stepped again to admire our handiwork. Certain, we principally watched as Rob and Johnny C. did all of the onerous work, however both approach, our race automobile had a splitter.

To extend its effectiveness and decrease drag, we screwed backyard edging (additionally bought from our native splitter superstore) alongside the hole between the splitter and entrance bumper. Our 350Z was lastly able to return to the observe.

As soon as we had a splitter, we would have liked to solidly mount it to the automobile. If this sounds a bit daunting, you possibly can crib from our notes: After our R&D, 9 Lives Racing added this very setup to its catalog. Dive deeper on our YouTube channel.
