[Editor’s Note: This article originally appeared in the August 2019 issue of Grassroots Motorsports. Prices have been left as they originally appeared in print.]
That click on–so acquainted to anybody who’s frolicked getting their arms soiled within the storage. That satisfying little pulse in your hand that indicators a job nicely executed. It’s a welcome piece of audible and tactile suggestions to lovers in all places.
To assist reply that query, we examined a sampling of each new and respectfully used wrenches from throughout the value spectrum. We additionally borrowed a digital testing system from our native Snap-on distributor.

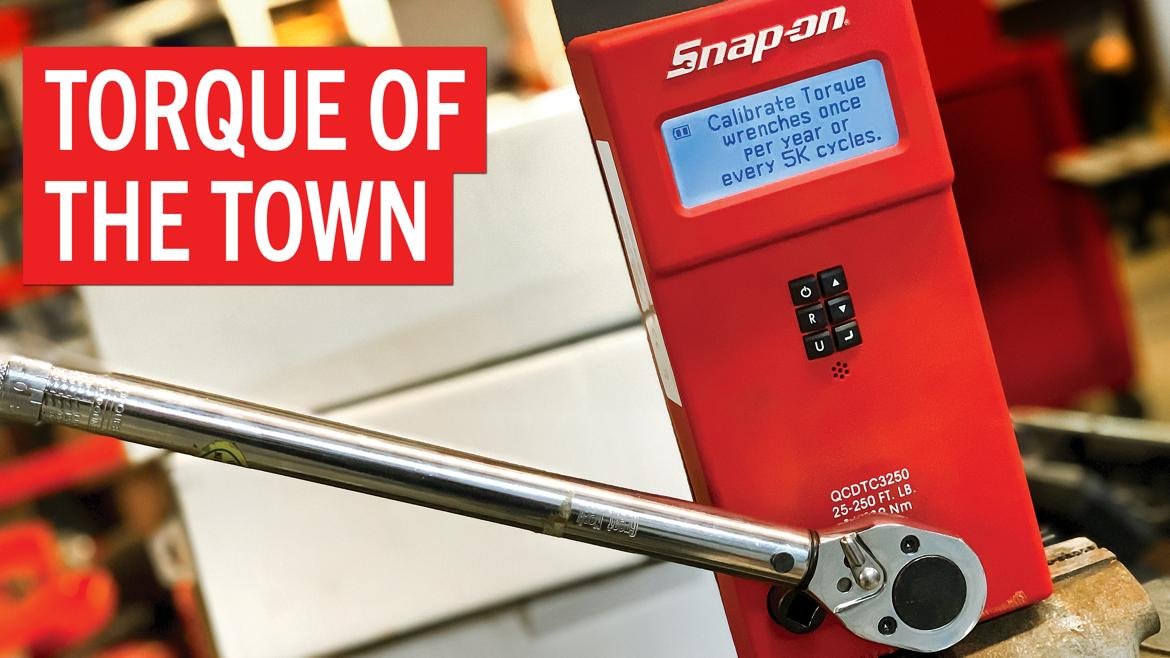

This tester, formally known as the Digital Torque Digital Checker–½ and ⅜
Inch, reads the utmost torque utilized to the enter shaft in both peak or steady mode. Snap-on says it’s correct to 1 % in each instructions, and we discovered it straightforward to use.
Our methodology was to carry out a number of exams at two completely different torque settings for every wrench. Utilizing the Snap-on system, we examined most of them at one-third of their most torque worth and once more close to two-thirds. Then we repeated these exams with a 6-inch extension in place to disclose any variation from simply the wrench and socket. To provide you with our accuracy determine, we in contrast our torque measurements towards the torque setting. We additionally evaluated every wrench’s high quality and usability.
We all know you actually simply need to skip forward and discover out the “winner,” however we urge you to suppose past that. Our aim is to point out the accuracy discovered at numerous worth factors. However first: Why do you want torque wrenches, and the way do they really work?
Torque 101
Once we speak about measuring fastener torque, what we actually need to know is the clamping drive: How tightly are two surfaces smooshing towards one another underneath a connection secured by threaded fasteners? This is likely one of the crucial forces engineers contemplate once they design one thing.
Sadly, you’ll be able to’t instantly measure clamping drive. Doing so would require some type of sensor sandwiched between the 2 objects, which might naturally battle with the mission of urgent them collectively.
So we do the subsequent smartest thing: extrapolate clamping drive through the quantity of rotational drive the threaded fasteners are exerting–often known as torque.
Click on, Click on
Torque wrenches–no less than the “click on” varieties that we’re principally coping with right here–all work equally. They’re multipiece designs that includes a hinged head close to the tip of the deal with.
With out rigidity, the top can be free to flop backwards and forwards, however the adjusting system–one calibrated for the specified quantity of torque–locations a preload on that head. Normally that is executed through a ball-and-spring association that includes a detent or comparable load-based positional retention system.
When the consumer overcomes the utmost preload of the retention system, the top breaks away from the retention system and the deal with strikes independently of the top. This causes the “click on” acquainted to anybody who has ever used a torque wrench.
Torque wrenches are calibrated on the manufacturing facility, and nearly all of them–even a budget ones–include a calibration type containing some pattern set torque values towards the precise measured values. These must be throughout the producer’s claimed accuracy for the wrench. (And in the event that they aren’t, the wrench most likely gained’t go away the manufacturing facility.)
This information permits the consumer to construct a profile for the wrench. For instance, if the testing reveals that the wrench at all times produces 2 % extra torque than the specified setting, then the consumer can set the specified torque 2 % under the really useful setting. Or simply stay with the additional oomph.
Since these are mechanical units topic to put on, most first rate torque wrenches may be recalibrated. Generally this takes the type of a special fee spring holding the detent mechanism; different instances it’s a easy preload adjustment through a hidden screw. Premium wrenches usually have calibration tips of their manuals. (You completely saved the instruction guide, proper?)
However you additionally should know the way precisely your wrench is studying, and for that there’s take a look at tools. The Snap-on torque checker we used retails for $550, however any software truck ought to have one on board for buyer use.
Every wrench producer has particular suggestions for calibrating its tools, however usually you need to calibrate a wrench yearly, or each 5000 cycles, or after any main trauma (that means dropping the wrench on a concrete flooring, not dropping $2500 in an ill-advised hockey guess).
SONIC TWO-WAY TORQUE WRENCH
Sonic Instruments is new to America, as the corporate arrived in our market early in 2015.
- The texture of the Sonics is among the many greatest in our comparability lineup, and the motion of the adjustment lock is constructive and definitive.
- Each the n/m and ft./lb. scales are off heart and barely distorted by their window shows, making them a bit onerous to learn.
- Like a lot of the wrenches in our take a look at, the Sonics had better-than-claimed accuracy.
FINAL THOUGHTS: The plastic grip and textured end beam really feel good, though we suspect the grip will get soiled sooner moderately than later with heavy use.
USAG TORQUE WRENCH
Griot’s Storage now carries instruments from USAG, an Italian agency courting again to 1926.
- These are scaled solely in n/m, which can restrict their attraction for some customers.
- As correct as any wrench within the group and really feel nice within the hand–however at these costs they’d higher.
- Very snug deal with.
FINAL THOUGHTS: For those who can stay with no lb.-ft. scale and don’t thoughts the value, these are price a glance, however others we examined present extra bang for the buck.
ICON TORQUE WRENCH
Earlier this 12 months Harbor Freight launched Icon, billed as its premium software line.
- The stamped scale may be barely onerous to learn, but it surely’s higher than the stamped scale on most low-end wrenches.
- The all-chrome development doesn’t really feel fairly as good within the hand because the plastic-gripped wrenches, but it surely ought to clear up higher and for longer.
- Nice accuracy, nice motion, clean 90-tooth ratchet, and an incredible worth. What’s to not like? Little or no, truly.
FINAL THOUGHTS: If we had to purchase a torque wrench tomorrow, we might select one in all these Icon items, arms down.
QUINN DIGITAL TORQUE ADAPTER
This battery-operated system, bought through Harbor Freight, turns a ratchet right into a digital torque wrench.
- Accuracy wasn’t nice, however the precise accuracy was inside that claimed by many widespread torque wrenches.
- The dearth of a mechanical “click on” means it may be difficult to make use of, particularly at low torque settings.
FINAL THOUGHTS: For lower than $30, it’s most likely not a foul addition to your toolbox, however you most likely gained’t need to use for terribly delicate assemblies.
KOBALT ½-INCH DRIVE PROGRAMMABLE ELECTRONIC TORQUE WRENCH
Kobalt, launched in 1998, serves as Lowe’s home model.
- The digital readout is very correct.
- The dearth of mechanical launch when torque is achieved means the consumer has to develop a really feel for the wrench and pay attention intently to the audible warnings.
FINAL THOUGHTS: Sadly, there’s not a compelling motive to advocate this wrench when there are such a lot of different good, cheaper decisions on the market.
PRECISION INSTRUMENTS SPLIT-BEAM CLICK WRENCHES
We borrowed this software from an expert mechanic good friend, and he admitted that it was high-mileage and due for a tune-up.
- Whereas it was the least correct on this take a look at, it was additionally essentially the most constant. Correctly calibrated, in idea, it must be up there with the perfect of them.
- The twin-beam motion feels good and breaks away cleanly when correct torque is achieved.
- The dial scale can also be straightforward to learn and simple to regulate.
FINAL THOUGHTS: Thumbs up for a top quality piece.
THAT $20 TORQUE WRENCH THAT EVERYONE OWNS
We additionally examined a few these ubiquitous $20 torque wrenches that may be discovered at Harbor Freight, Northern Device, Tractor Provide and Walmart.
- The stamped numbers are a bit onerous to learn, and the ratchet and breakaway motion doesn’t match that of the premium wrenches, however what the hell would you like for $20?
- Accuracy was darn good for the cash. We examined a number of of those and by no means discovered yet another than 4% out of whack. Some learn inside 2%.
FINAL THOUGHTS: Everybody ought to maintain one in all these in each toolbox or trailer and use it for the much less delicate stuff. Plus, it’s an incredible loaner. Consider it as a hammer that truly does some pretty correct torqueing.
